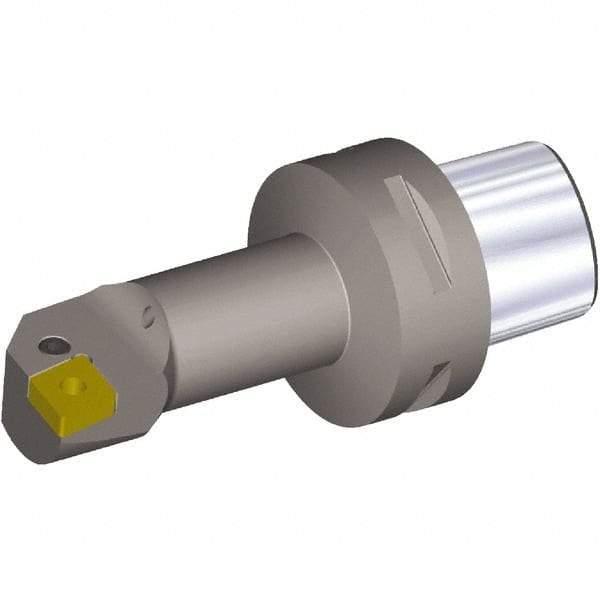

Kennametal - Right Hand Cut, Size PSC63, CN.. 432 & CN... 120408 Insert Compatiblity, Internal Modular Turning & Profiling Cutting Unit Head - 17mm Ctr to Cutting Edge, 100mm Head Length, Through Coolant, Series PSC
Item #: 49071525
Brand: Kennametal
Model #: 6342951
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | PSC63 |
| Series Name | PSC |
| Cutting Direction | Right Hand |
| Head Length/Projection (mm) | 100.00 |
| Head Length/Projection (Decimal Inch) | 3.9370 |
| Insert Style | CN.. 432; CN... 120408 |
| Internal or External | Internal |
| Center to Cutting Edge (mm) | 17.00 |
| Center to Cutting Edge (Decimal Inch) | 0.6693 |
| Through Coolant | Through Coolant |
| Maximum Hole Depth (mm) | 74.00 |
| Minimum Hole Diameter (mm) | 32.00 |
| Axial Rake Angle | -5 |
| Radial Rake Angle | -13.5 |
| Neck Diameter (mm) | 25.00 |
