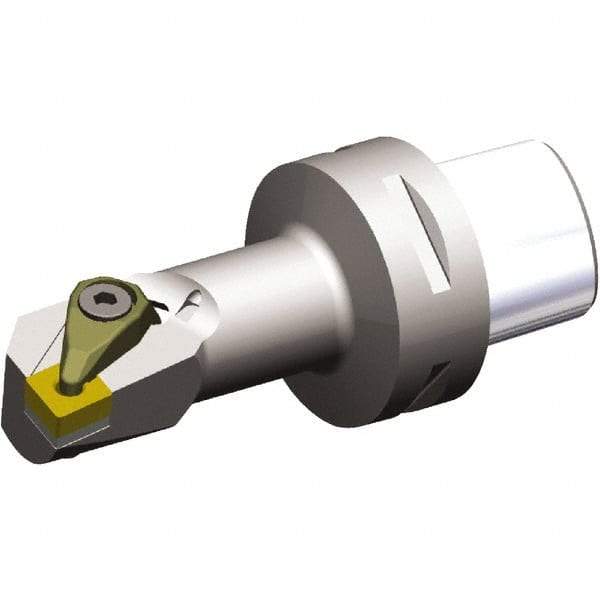

Kennametal - Left Hand Cut, Size PSC63, CN.. 1606.. & CN..543 Insert Compatiblity, Internal Modular Turning & Profiling Cutting Unit Head - 27mm Ctr to Cutting Edge, 140mm Head Length, Through Coolant, Series PSC
Item #: 49071020
Brand: Kennametal
Model #: 6339685
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | PSC63 |
| Series Name | PSC |
| Cutting Direction | Left Hand |
| Head Length/Projection (mm) | 140.00 |
| Head Length/Projection (Decimal Inch) | 5.5118 |
| Insert Style | CN.. 1606..; CN..543 |
| Internal or External | Internal |
| Center to Cutting Edge (mm) | 27.00 |
| Center to Cutting Edge (Decimal Inch) | 1.0630 |
| Through Coolant | Through Coolant |
| Maximum Hole Depth (mm) | 114.00 |
| Minimum Hole Diameter (mm) | 50.00 |
| Axial Rake Angle | -5 |
| Radial Rake Angle | -12 |
| Neck Diameter (mm) | 40.00 |
