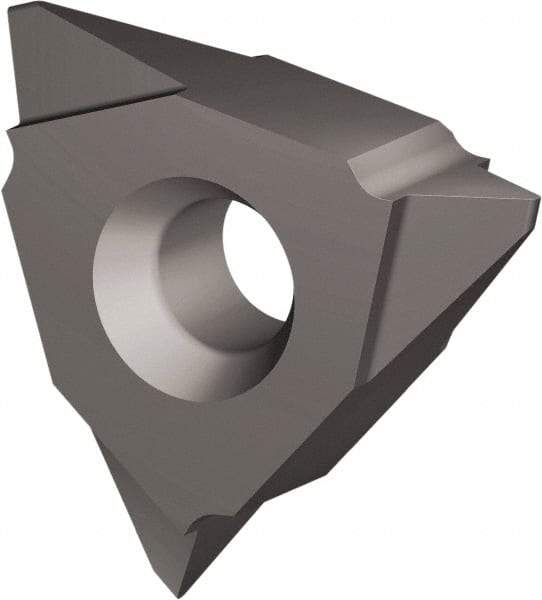

Vargus - 5VIR27 TR Grade VTX Internal On Edge Threading Insert - TiAlN Finish, 5/8" Inscribed Circle, Right Hand Cut
Item #: 49067861
Brand: Vargus
Model #: 62100
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 5VIR |
| Insert Size | 27 |
| Thread Type | Internal |
| Cutting Direction | Right Hand |
| Thread Standard | TR |
| Manufacturer's Grade | VTX |
| Internal Pitch (mm) | 12.00 |
| Inscribed Circle (Inch) | 5/8 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Thickness (Decimal Inch) | 0.4055 |
| Rake | Positive |
| Material | Carbide |
| Coating | TiAlN |
| Hole Diameter (Decimal Inch) | 0.2630 |
| Material Grade | Micrograin |
| Coating Process | PVD |
| Rake Angle | 10 |
