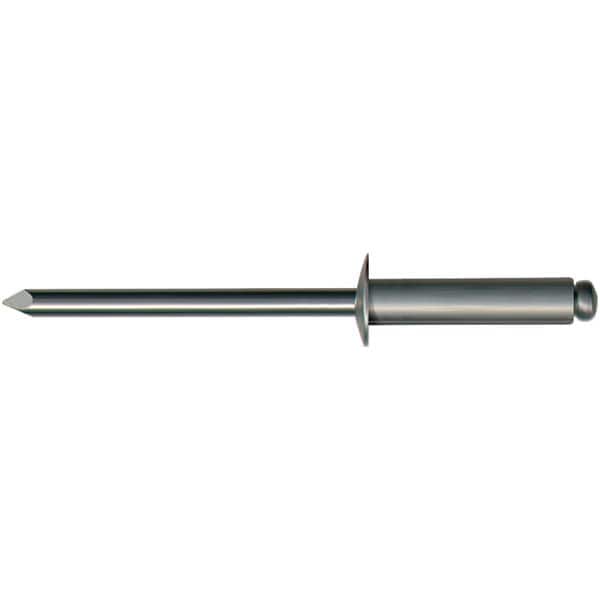

Marson - Blind Rivets; Type: Open End ; Head Type: Button ; Size Code: 64 ; Rivet Material: Aluminum ; Mandrel Material: Aluminum ; Minimum Grip (Decimal Inch): 0.1260
Item #: 49053614
Brand: Marson
Model #: M40247
Product Specifications
Blind Rivets; Type: Open End ; Head Type: Button ; Size Code: 64 ; Rivet Material: Aluminum ; Mandrel Material: Aluminum ; Minimum Grip (Decimal Inch): 0.1260
| Type | Open End |
| Head Type | Button |
| Size Code | 64 |
| Rivet Material | Aluminum |
| Mandrel Material | Aluminum |
| Minimum Grip (Decimal Inch) | 0.1260 |
| Maximum Grip (Decimal Inch) | 0.2500 |
| Head Diameter (Decimal Inch) | 0.375 |
| Minimum Hole Diameter (Decimal Inch) | 0.1920 |
| Maximum Hole Diameter (Decimal Inch) | 0.1960 |
| Rivet Material Grade | 5052 |
| Drill Size (Wire) | #11 |
| Body Diameter (Decimal Inch) | 0.1875 |
| Shear Strength (Lb.) | 330 |
| Tensile Strength (Lb.) | 515 |
| Head Height (Decimal Inch) | 0.0600 |
