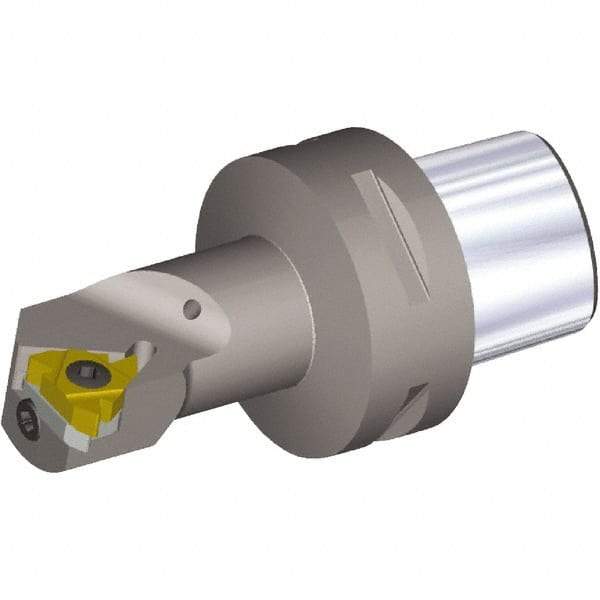

Kennametal - Insert Style LT16NR, 105mm Head Length, Right Hand Cut, Internal Modular Threading Cutting Unit Head - System Size PSC63, 27mm Center to Cutting Edge, Series PSC
Item #: 49016462
Brand: Kennametal
Model #: 6341533
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | PSC63 |
| Series Name | PSC |
| Thread Type | Internal |
| Cutting Direction | Right Hand |
| Center to Cutting Edge (mm) | 27.00 |
| Head Length/Projection (mm) | 105.00 |
| Head Length/Projection (Decimal Inch) | 4.1339 |
| Insert Style | LT16NR |
| Insert Holding Method | Screw & Clamp |
| Toolholder Material | Steel |
| Neck Diameter (mm) | 40.00 |
| Minimum Hole Diameter (mm) | 50.00 |
| Axial Rake Angle | -1 |
| Radial Rake Angle | -15 |
