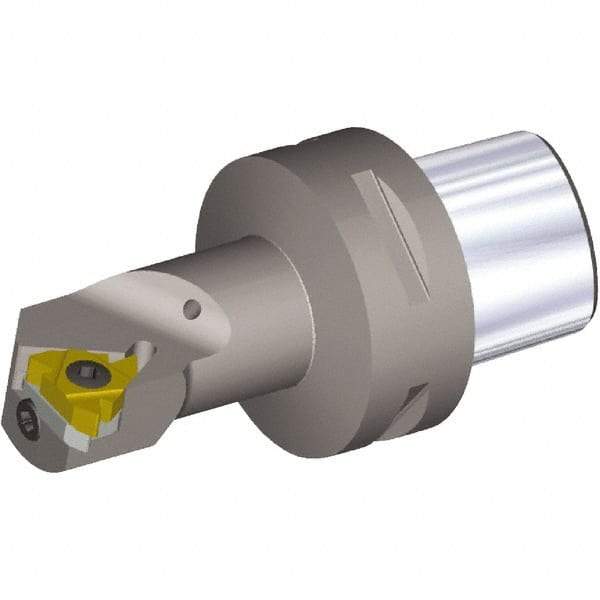

Kennametal - Insert Style LT16NR, 60mm Head Length, Right Hand Cut, Internal Modular Threading Cutting Unit Head - System Size PSC50, 12mm Center to Cutting Edge, Series PSC
Item #: 49016165
Brand: Kennametal
Model #: 6319814
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | PSC50 |
| Series Name | PSC |
| Thread Type | Internal |
| Cutting Direction | Right Hand |
| Center to Cutting Edge (mm) | 12.00 |
| Head Length/Projection (mm) | 60.00 |
| Head Length/Projection (Decimal Inch) | 2.3622 |
| Insert Style | LT16NR |
| Insert Holding Method | Screw & Clamp |
| Toolholder Material | Steel |
| Neck Diameter (mm) | 15.50 |
| Minimum Hole Diameter (mm) | 20.00 |
| Axial Rake Angle | -1 |
| Radial Rake Angle | -15 |
