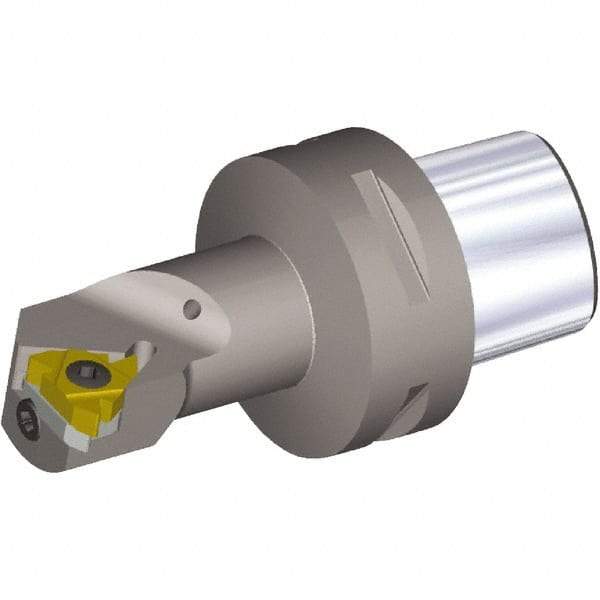

Kennametal - Insert Style LT16NL, 75mm Head Length, Left Hand Cut, Internal Modular Threading Cutting Unit Head - System Size PSC63, 17mm Center to Cutting Edge, Series PSC
Item #: 49015860
Brand: Kennametal
Model #: 6341524
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | PSC63 |
| Series Name | PSC |
| Thread Type | Internal |
| Cutting Direction | Left Hand |
| Center to Cutting Edge (mm) | 17.00 |
| Head Length/Projection (mm) | 75.00 |
| Head Length/Projection (Decimal Inch) | 2.9528 |
| Insert Style | LT16NL |
| Insert Holding Method | Screw & Clamp |
| Toolholder Material | Steel |
| Neck Diameter (mm) | 24.50 |
| Minimum Hole Diameter (mm) | 32.00 |
| Axial Rake Angle | -1 |
| Radial Rake Angle | -15 |
