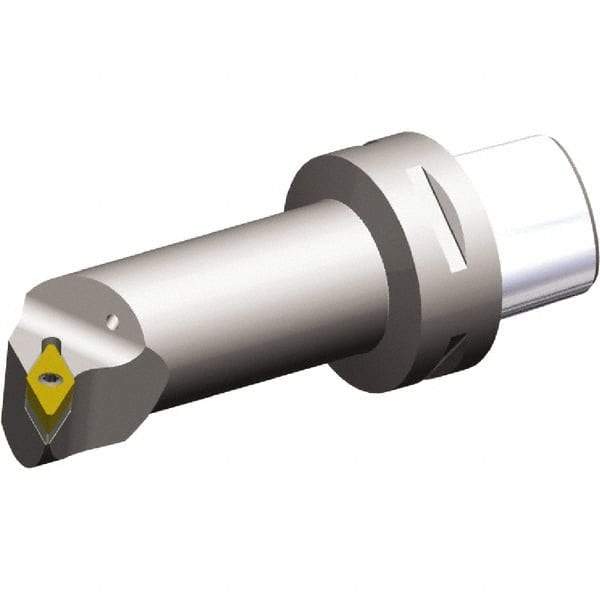

Kennametal - Left Hand Cut, Size PSC50, VB.. 1604 & VB.. 332 Insert Compatiblity, Internal Modular Turning & Profiling Cutting Unit Head - 18mm Ctr to Cutting Edge, 90mm Head Length, Through Coolant, Series PSC
Item #: 48978670
Brand: Kennametal
Model #: 6330401
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | PSC50 |
| Series Name | PSC |
| Cutting Direction | Left Hand |
| Head Length/Projection (mm) | 90.00 |
| Head Length/Projection (Decimal Inch) | 3.5433 |
| Insert Style | VB.. 1604; VB.. 332 |
| Internal or External | Internal |
| Center to Cutting Edge (mm) | 18.00 |
| Center to Cutting Edge (Decimal Inch) | 0.7087 |
| Through Coolant | Through Coolant |
| Maximum Hole Depth (mm) | 67.00 |
| Minimum Hole Diameter (mm) | 33.00 |
| Axial Rake Angle | 0 |
| Radial Rake Angle | -12 |
| Neck Diameter (mm) | 25.00 |
