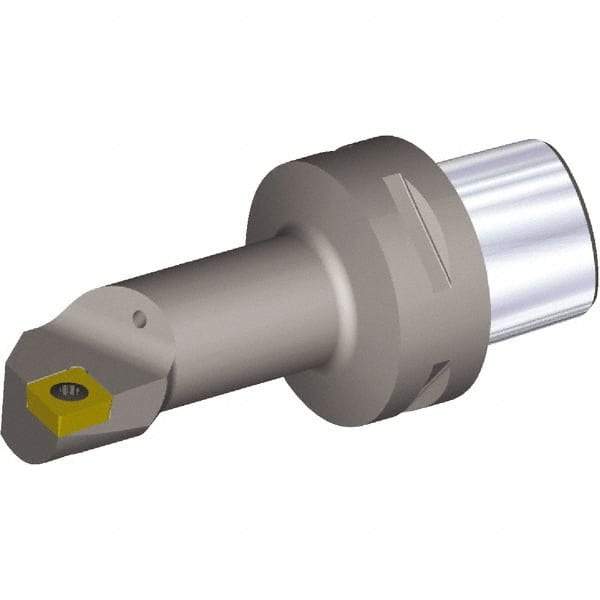

Kennametal - Left Hand Cut, Size PSC50, CC.. 09T3.. & CC..3252 Insert Compatiblity, Internal Modular Turning & Profiling Cutting Unit Head - 11mm Ctr to Cutting Edge, 70mm Head Length, Through Coolant, Series PSC
Item #: 48978357
Brand: Kennametal
Model #: 6319836
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | PSC50 |
| Series Name | PSC |
| Cutting Direction | Left Hand |
| Head Length/Projection (mm) | 70.00 |
| Head Length/Projection (Decimal Inch) | 2.7559 |
| Insert Style | CC.. 09T3..; CC..3252 |
| Internal or External | Internal |
| Center to Cutting Edge (mm) | 11.00 |
| Center to Cutting Edge (Decimal Inch) | 0.4331 |
| Through Coolant | Through Coolant |
| Maximum Hole Depth (mm) | 46.00 |
| Minimum Hole Diameter (mm) | 20.00 |
| Axial Rake Angle | 0 |
| Radial Rake Angle | -12 |
| Neck Diameter (mm) | 16.00 |
