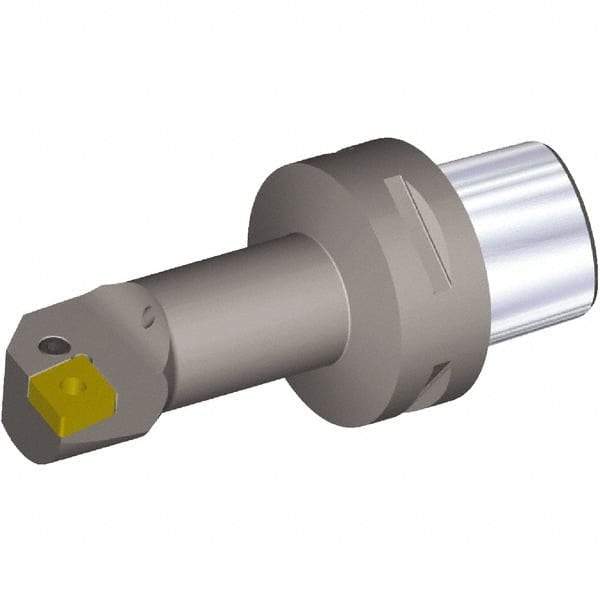

Kennametal - Left Hand Cut, Size PSC50, CN.. 432 & CN..120408 Insert Compatiblity, Internal Modular Turning & Profiling Cutting Unit Head - 22mm Ctr to Cutting Edge, 110mm Head Length, Through Coolant, Series PSC
Item #: 48978167
Brand: Kennametal
Model #: 6320406
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | PSC50 |
| Series Name | PSC |
| Cutting Direction | Left Hand |
| Head Length/Projection (mm) | 110.00 |
| Head Length/Projection (Decimal Inch) | 4.3307 |
| Insert Style | CN.. 432; CN..120408 |
| Internal or External | Internal |
| Center to Cutting Edge (mm) | 22.00 |
| Center to Cutting Edge (Decimal Inch) | 0.8661 |
| Through Coolant | Through Coolant |
| Maximum Hole Depth (mm) | 88.00 |
| Minimum Hole Diameter (mm) | 40.00 |
| Axial Rake Angle | -6 |
| Radial Rake Angle | -11 |
| Neck Diameter (mm) | 32.00 |
