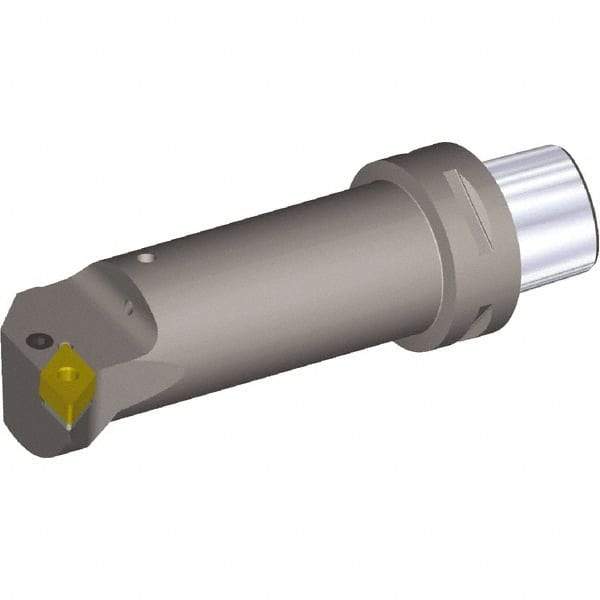

Kennametal - Left Hand Cut, Size PSC50, DN.. 1506.. & DN.. 442 Insert Compatiblity, Internal Modular Turning & Profiling Cutting Unit Head - 35mm Ctr to Cutting Edge, 150mm Head Length, Through Coolant, Series PSC
Item #: 48978027
Brand: Kennametal
Model #: 6320540
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | PSC50 |
| Series Name | PSC |
| Cutting Direction | Left Hand |
| Head Length/Projection (mm) | 150.00 |
| Head Length/Projection (Decimal Inch) | 5.9055 |
| Insert Style | DN.. 1506..; DN.. 442 |
| Internal or External | Internal |
| Center to Cutting Edge (mm) | 35.00 |
| Center to Cutting Edge (Decimal Inch) | 1.3780 |
| Through Coolant | Through Coolant |
| Maximum Hole Depth (mm) | 150.00 |
| Minimum Hole Diameter (mm) | 63.00 |
| Axial Rake Angle | -5 |
| Radial Rake Angle | -11 |
| Neck Diameter (mm) | 50.00 |
