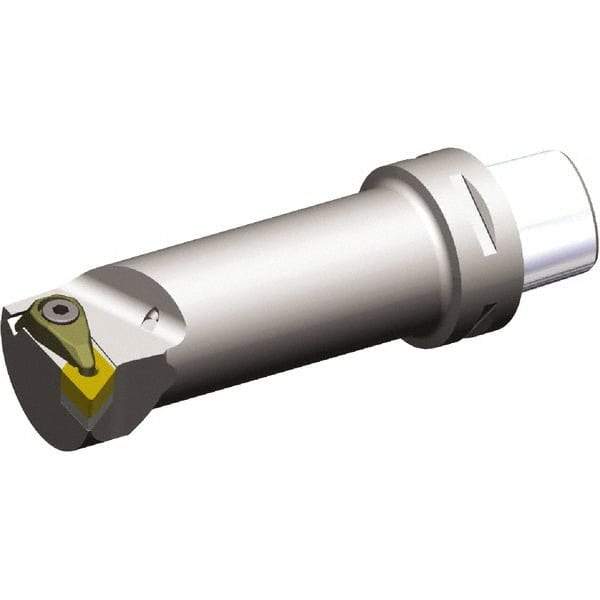

Kennametal - Left Hand Cut, Size PSC50, DN..110408 & DN..332 Insert Compatiblity, Internal Modular Turning & Profiling Cutting Unit Head - 17mm Ctr to Cutting Edge, 90mm Head Length, Through Coolant, Series PSC
Item #: 48977755
Brand: Kennametal
Model #: 6330421
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | PSC50 |
| Series Name | PSC |
| Cutting Direction | Left Hand |
| Head Length/Projection (mm) | 90.00 |
| Head Length/Projection (Decimal Inch) | 3.5433 |
| Insert Style | DN..110408; DN..332 |
| Internal or External | Internal |
| Center to Cutting Edge (mm) | 17.00 |
| Center to Cutting Edge (Decimal Inch) | 0.6693 |
| Through Coolant | Through Coolant |
| Maximum Hole Depth (mm) | 66.00 |
| Minimum Hole Diameter (mm) | 32.00 |
| Axial Rake Angle | -6 |
| Radial Rake Angle | -14 |
| Neck Diameter (mm) | 25.00 |
