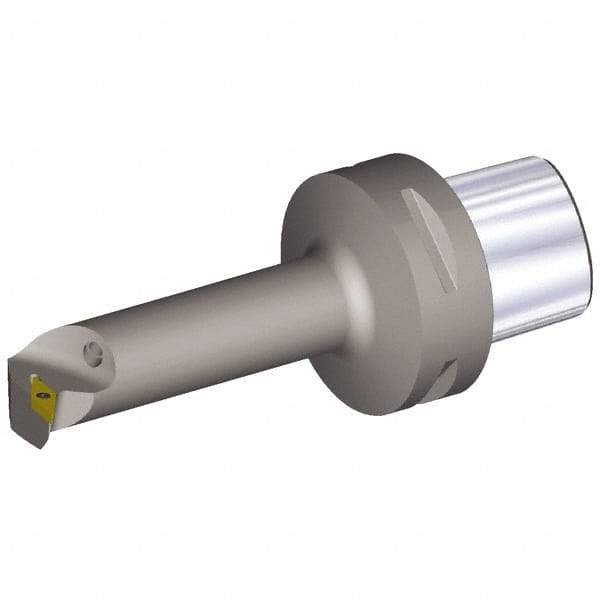

Kennametal - Left Hand Cut, Size PSC63, VB..110304 & VB..221 Insert Compatiblity, Internal Modular Turning & Profiling Cutting Unit Head - 22mm Ctr to Cutting Edge, 140mm Head Length, Through Coolant, Series PSC
Item #: 48977482
Brand: Kennametal
Model #: 4103007
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | PSC63 |
| Series Name | PSC |
| Cutting Direction | Left Hand |
| Head Length/Projection (mm) | 140.00 |
| Head Length/Projection (Decimal Inch) | 5.5118 |
| Insert Style | VB..110304; VB..221 |
| Internal or External | Internal |
| Center to Cutting Edge (mm) | 22.00 |
| Center to Cutting Edge (Decimal Inch) | 0.8661 |
| Through Coolant | Through Coolant |
| Maximum Hole Depth (mm) | 114.12 |
| Maximum Hole Depth (Decimal Inch) | 4.4930 |
| Minimum Hole Diameter (mm) | 40.00 |
| Axial Rake Angle | 0 |
| Radial Rake Angle | -5 |
| Neck Diameter (mm) | 32.00 |
