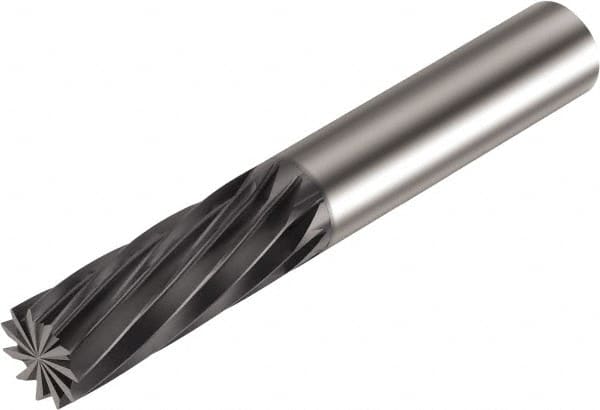

Sandvik Coromant - 12.7mm, 1.252" LOC, 12.7mm Shank Diam, 11 Flute, Solid Carbide Square End Mill - Diamond Finish, -4° Helix, Centercutting, Series CoroMill Plura
Item #: 48944631
Brand: Sandvik Coromant
Model #: 7254435
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Diamond (CVD) coated tools are the hardest of the coatings. It is used exclusively for applications in non-ferrous materials such as aluminum, graphite, copper and carbon fiber.
Center Cutting tools have one or more cutting edges at the tip and are used in a variety of applications including plunging, drilling or ramping.
| Product Specifications | |
|---|---|
| Mill Diameter (mm) | 12.70 |
| Mill Diameter (Decimal Inch) | 0.5000 |
| Number of Flutes | 11 |
| Length of Cut (Decimal Inch) | 1.2520 |
| Material | Solid Carbide |
| Finish/Coating | Diamond |
| Shank Diameter (mm) | 12.70 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Center Cutting | Center Cutting |
| Helix Angle | -4 |
| Manufacturer Grade | O10A |
| Series/List | CoroMill Plura |
