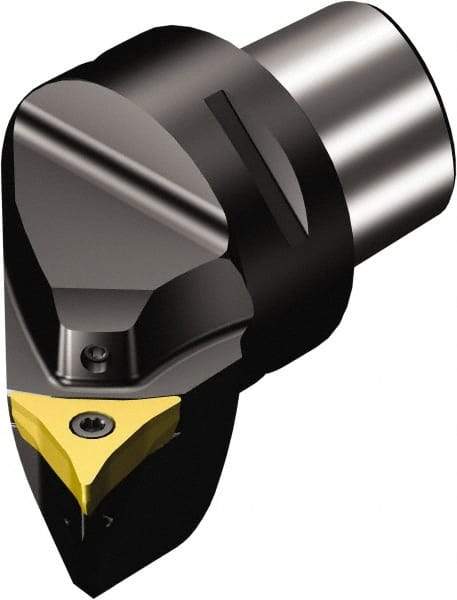

Sandvik Coromant - Left Hand Cut, Size C6, CP-A1108 Insert Compatiblity, Modular Turning & Profiling Cutting Unit Head - 45mm Ctr to Cutting Edge, 65mm Head Length, Through Coolant, Series CoroTurn Prime
Item #: 48944391
Brand: Sandvik Coromant
Model #: 7100715
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C6 |
| Series Name | CoroTurn Prime |
| Cutting Direction | Left Hand |
| Head Length/Projection (mm) | 65.00 |
| Head Length/Projection (Decimal Inch) | 2.5591 |
| Insert Style | CP-A1108 |
| Center to Cutting Edge (mm) | 45.00 |
| Center to Cutting Edge (Decimal Inch) | 1.7716 |
| Through Coolant | Yes |
| Maximum Hole Depth (mm) | 65.00 |
| Maximum Hole Depth (Decimal Inch) | 2.5591 |
| Minimum Hole Diameter (mm) | 30.00 |
| Minimum Hole Diameter (Decimal Inch) | 1.1811 |
| Neck Diameter (mm) | 63.00 |
| Neck Diameter (Decimal Inch) | 2.48032 |
| Complete Insert Compatibility | CP-A1108 |
| Head Connection Size | C6 |
