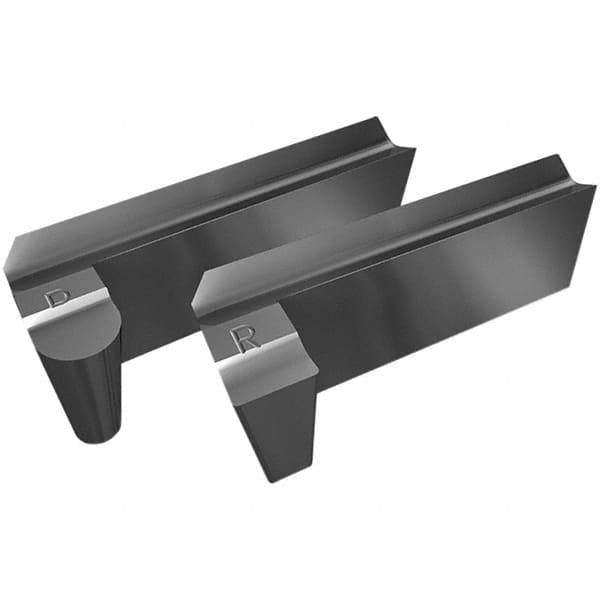

Iscar - 16-15.5-3T9LPGIL Grade IC907, 3mm Cutting Width Carbide Grooving Insert - 8.5mm Max Depth of Cut, Left Hand, 0.3mm Corner Radius, TiAlN/TiN Finish
Item #: 48938450
Brand: Iscar
Model #: 3307497
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LPGIL |
| Insert Size | 16-15.5-3T9 |
| Material | Carbide |
| Cutting Width (mm) | 3.00 |
| Cutting Width (Decimal Inch) | 0.1180 |
| Maximum Depth of Cut (mm) | 8.50 |
| Material Grade | Submicron |
| Manufacturer's Grade | IC907 |
| Coating | TiAlN/TiN |
| Insert Hand | Left Hand |
| Multi-Use Application | Grooving; Parting; Turning |
| Maximum Corner Radius (Decimal Inch) | 0.0120 |
| Corner Radius (mm) | 0.30 |
| Corner Radius (Decimal Inch) | 0.0120 |
| Coating Process | PVD |
| Overall Length (mm) | 30.60 |
| Overall Length (Decimal Inch) | 1.2050 |
| Series | Cut Grip |
| ISO Number | LPGIL 16-15.5-3T9PR IC907 |
| Manufacturers Catalog Number | 3307497 |
| Overall Width (mm) | 15.50 |
| Overall Width (Decimal Inch) | 0.6100 |
