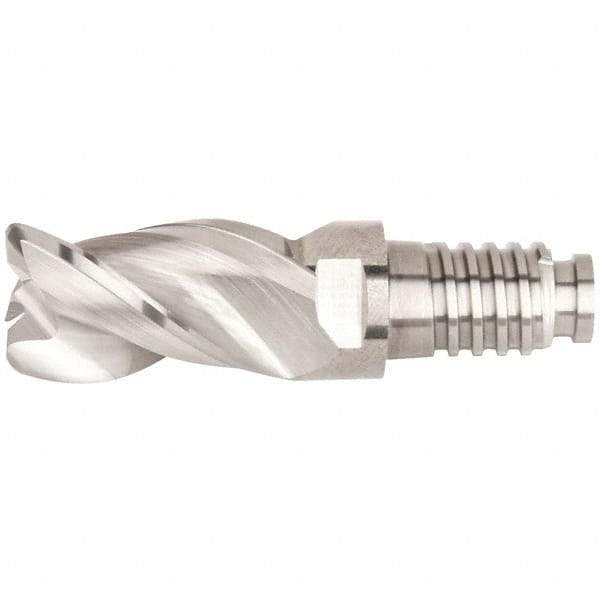

Kennametal - 1/2" Diam, 3/4" LOC, 3 Flute, 0.09" Corner Radius End Mill Head - Solid Carbide, Uncoated, Duo-Lock 12 Connection, Spiral Flute, 38° Helix, Centercutting
Item #: 48918122
Brand: Kennametal
Model #: 6153955
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds for general applications on nonferrous metals.
| Product Specifications | |
|---|---|
| Mill Diameter (Inch) | 1/2 |
| Mill Diameter (Decimal Inch) | 0.5000 |
| End Type | Corner Radius |
| Corner Radius (Decimal Inch) | 0.0900 |
| Number of Flutes | 3 |
| Material | Solid Carbide |
| Finish/Coating | Uncoated |
| Length of Cut (Inch) | 3/4 |
| Connection Type | Duo-Lock 12 |
| Overall Length (mm) | 43.60 |
| Flute Type | Spiral |
| Series/List | Duo-Lock ABDE |
| Centercutting | Yes |
| Helix Angle | 38.00 |
| Material Grade | K600 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
