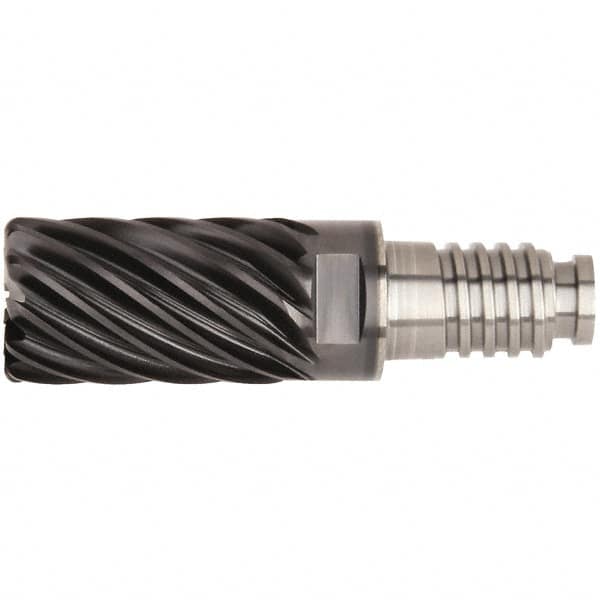

Kennametal - 5/8" Diam, 15/16" LOC, 11 Flute, 0.015" Corner Radius End Mill Head - Solid Carbide, AlTiN Finish, Duo-Lock 16 Connection, Spiral Flute, 36° Helix
Item #: 48891790
Brand: Kennametal
Model #: 6127217
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Aluminum titanium nitride (AlTiN) is one of the most abrasive-resistant and hardest of the coatings. It is commonly used for machining aircraft and aerospace material, nickel alloys, stainless steel, titanium, cast iron and carbon steel.
| Product Specifications | |
|---|---|
| Mill Diameter (Inch) | 5/8 |
| Mill Diameter (Decimal Inch) | 0.6250 |
| End Type | Corner Radius |
| Corner Radius (Decimal Inch) | 0.0150 |
| Number of Flutes | 11 |
| Material | Solid Carbide |
| Finish/Coating | AlTiN |
| Length of Cut (Inch) | 15/16 |
| Connection Type | Duo-Lock 16 |
| Overall Length (mm) | 56.20 |
| Flute Type | Spiral |
| Series/List | Duo-Lock FSDE |
| Centercutting | No |
| Helix Angle | 36.00 |
| Material Grade | KC643M |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
