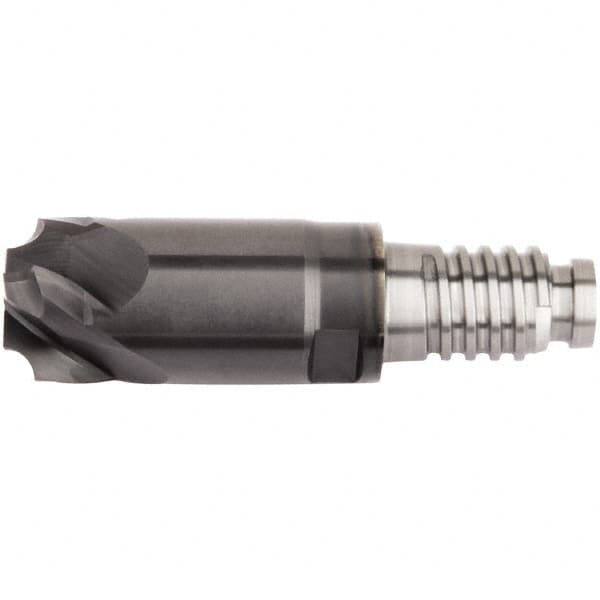

Kennametal - 12mm Diam, 1mm LOC, 5 Flute, 1mm Corner Radius End Mill Head - Solid Carbide, AlTiN Finish, Duo-Lock 10 Connection, Spiral Flute, 0° Helix
Item #: 48889414
Brand: Kennametal
Model #: 6127384
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Aluminum titanium nitride (AlTiN) is one of the most abrasive-resistant and hardest of the coatings. It is commonly used for machining aircraft and aerospace material, nickel alloys, stainless steel, titanium, cast iron and carbon steel.
| Product Specifications | |
|---|---|
| Mill Diameter (mm) | 12.00 |
| End Type | Corner Radius |
| Corner Radius (mm) | 1.000 |
| Number of Flutes | 5 |
| Material | Solid Carbide |
| Finish/Coating | AlTiN |
| Length of Cut (mm) | 1.00 |
| Connection Type | Duo-Lock 10 |
| Overall Length (mm) | 42.00 |
| Flute Type | Spiral |
| Series/List | Duo-Lock XRDA |
| Centercutting | No |
| Helix Angle | 0.00 |
| Material Grade | KCPM15 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
