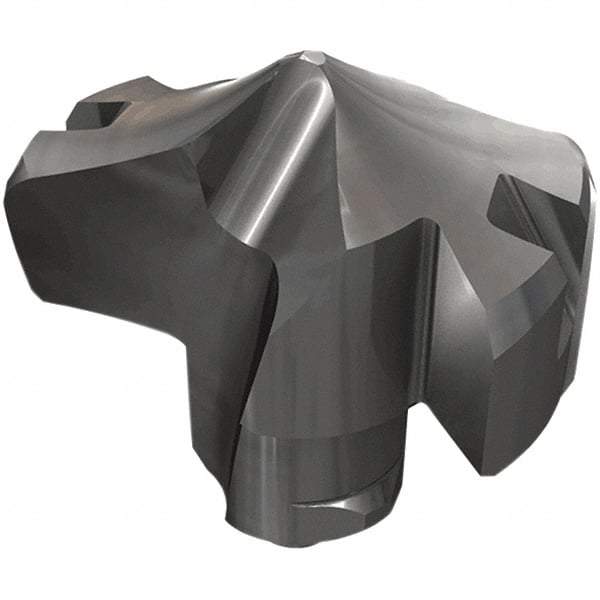

Iscar - Series HCP-IQ, 15.3mm Diam Grade IC908 Replaceable Drill Tip - Carbide, TiAlN/TiN Finish, 15 Seat Size
Item #: 48883342
Brand: Iscar
Model #: 5567979
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
TiAlN/TiN is a multilayer coating that combines the high hardness of TiN and the heat resistance of TiAlN. It is commonly used on softer materials in general purpose applications.
| Product Specifications | |
|---|---|
| Diameter (mm) | 15.30 |
| Diameter (Decimal Inch) | 0.6020 |
| Material | Carbide |
| Material Grade | Submicron |
| Manufacturer's Grade | IC908 |
| Series | HCP-IQ |
| Coating | TiAlN/TiN |
| Insert Seat Size | 15 |
| Through Coolant | No |
| Coating Process | PVD |
| Height (mm) | 8.73 |
| Height (Decimal Inch) | 0.3440 |
