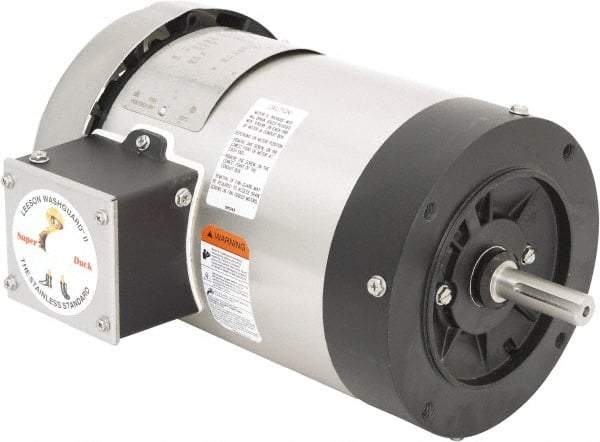

Leeson - 1 Max hp, 1,800 Max RPM, Premium Efficient Electric AC DC Motor - 230/460 V Input, Three Phase, 56C Frame, C-Face Mount, TEFC Enclosure
Item #: 48862403
Brand: Leeson
Model #: 119487.00
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Premium Efficient |
| Type of Enclosure | TEFC |
| Maximum HorsePower | 1 |
| Minimum Horsepower | 1 |
| Phase | Three |
| Input Voltage | 230/460 |
| Frame Size | 56C |
| Full Load Amperage | 3.2 |
| Mount Type | C-Face |
| Bearing Type | Double Sealed Ball Bearings |
| Service Factor Rating | 1.15 |
| Frame Material | Stainless Steel |
| Applications | Washdown |
| Maximum RPM | 1800 |
| PSC Code | 6105 |
