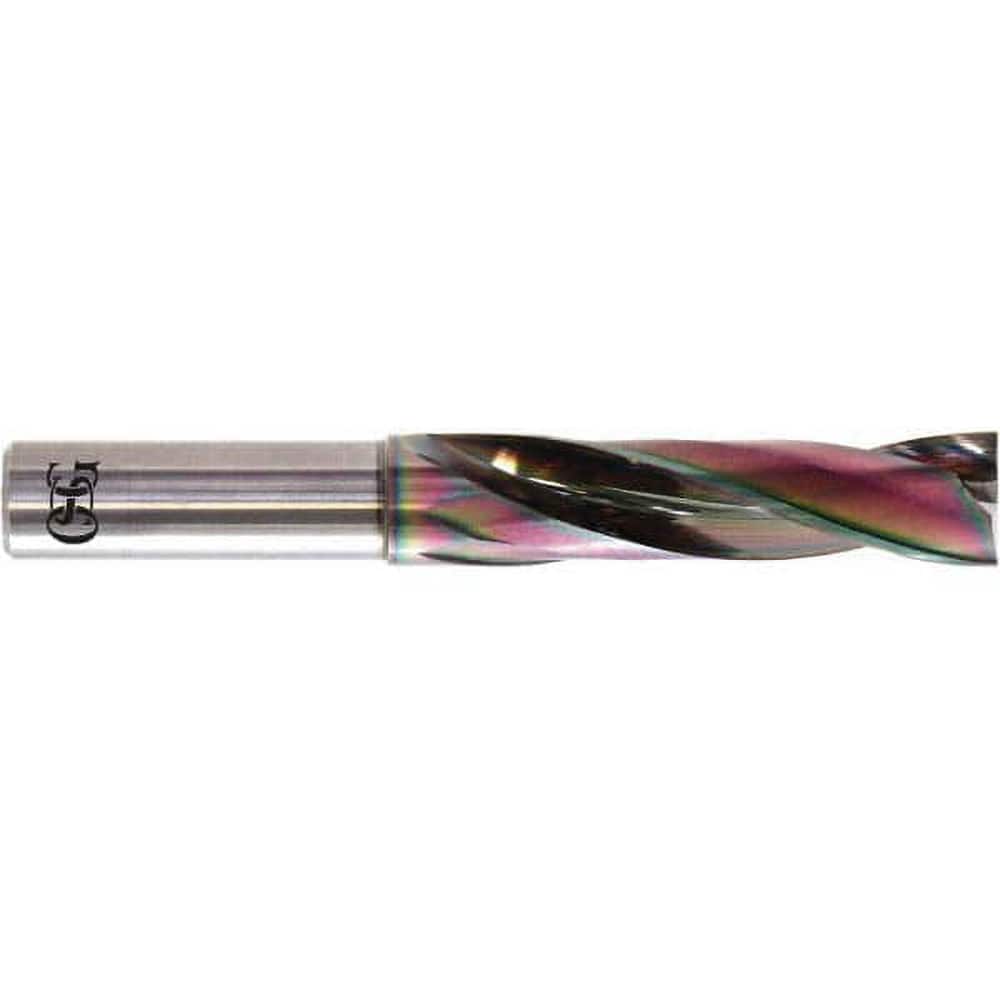

Screw Machine Length Drill Bit: 0.4688″ Dia, 180 °, Solid Carbide Coated, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 5700
Item #: 48818009
Brand: OSG
Model #: 570046811
Product Specifications
| Drill Bit Size (Inch) | 15/32 |
| Drill Bit Size (mm) | 11.91 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Coated |
| Drill Point Angle | 180 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Drill Bit Size (Decimal Inch) | 0.4688 |
| Overall Length (mm) | 95.00 |
| Overall Length (Decimal Inch) | 3.7402 |
| Series | 5700 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Drill Length Type | Screw Machine |
| Point Type | Web-Thinned |
| Flute By Diameter Ratio | 2xD |
| Tool Performance | High Performance |
| Drill Bit Diameter Tolerance | +0 to -0.027 mm |
| Flute Length (mm) | 50.00 |
| Drill Bit Size Range (Decimal Inch) | 0.4500 to 0.5000 |
