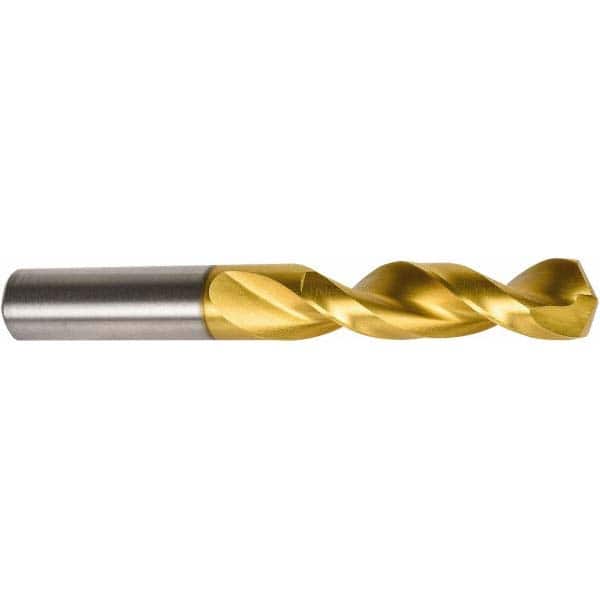

Precision Twist Drill - #17 135° Parabolic Flute High Speed Steel Screw Machine Drill Bit
Item #: 78574027
Brand: Precision Twist Drill
Model #: 061417
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications on both ferrous and nonferrous materials.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
Parabolic flutes have a wider flute shape for increased chip flow.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.1730 |
| Drill Bit Size (Wire) | #17 |
| Drill Point Angle | 135 |
| Drill Bit Material | High Speed Steel |
| Drill Bit Finish/Coating | TiN |
| Flute Type | Parabolic |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Flute Length (Inch) | 1-1/8 |
| Overall Length (Inch) | 2-3/16 |
| Point Type | Split Point |
| Specification Designation | ANSI |
| Threaded Shank | No |
| Web Configuration | Tapered |
| Web Thinning | Web-Thinned |
| Series/List | QC41G |
