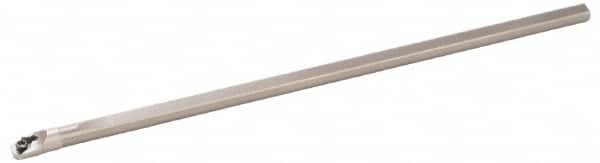

Kennametal - 10.8mm Min Bore Diam, 250mm OAL, 10mm Shank Diam, E-SWUP Indexable Boring Bar - WP.. Insert, Screw Holding Method
Item #: 48594717
Brand: Kennametal
Model #: 1930558
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | E-SWUP |
| Series | Screw-On |
| Minimum Bore Diameter (mm) | 10.80 |
| Minimum Bore Diameter (Decimal Inch) | 0.4252 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 250.00 |
| Overall Length (Decimal Inch) | 9.8425 |
| Shank Diameter (mm) | 10.00 |
| Shank Diameter (Decimal Inch) | 0.3940 |
| Insert Compatibility | WP.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Lead Angle | 3 |
| Center to Cutting Edge (mm) | 5.60 |
| Insert Thickness (Inch) | 3/32 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Rake Angle | 0 |
| Coolant Hole Diameter (mm) | 3.20 |
| Complete Insert Compatibility | WP.. 040202 |
| Toolholder Material | Carbide |
