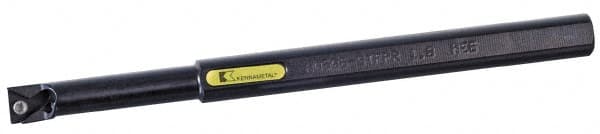

Kennametal - 20mm Min Bore Diam, 200mm OAL, 16mm Shank Diam, E-STFP Indexable Boring Bar - TP.. Insert, Screw Holding Method
Item #: 48594337
Brand: Kennametal
Model #: 1152875
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | E-STFP |
| Series | Screw-On |
| Minimum Bore Diameter (mm) | 20.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.7874 |
| Hand of Holder | Left Hand |
| Overall Length (mm) | 200.00 |
| Overall Length (Decimal Inch) | 7.8740 |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6300 |
| Insert Compatibility | TP.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Center to Cutting Edge (mm) | 11.00 |
| Insert Thickness (Inch) | 3/32 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Rake Angle | 0 |
| Coolant Hole Diameter (mm) | 5.50 |
| Complete Insert Compatibility | TP.. 110202 |
| Toolholder Material | Carbide |
