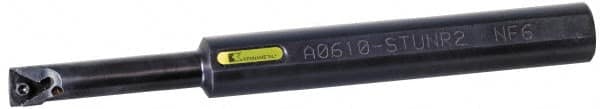

Kennametal - 15.24mm Min Bore Diam, 203.2mm OAL, 1/2" Shank Diam, E-STUN Indexable Boring Bar - T221P Insert, Screw Holding Method
Item #: 48594030
Brand: Kennametal
Model #: 1152615
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | E-STUN |
| Series | Screw-On |
| Minimum Bore Diameter (mm) | 15.24 |
| Minimum Bore Diameter (Decimal Inch) | 0.6000 |
| Hand of Holder | Left Hand |
| Overall Length (mm) | 203.20 |
| Overall Length (Decimal Inch) | 8.0000 |
| Shank Diameter (mm) | 12.70 |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Insert Compatibility | T221P |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.3120 |
| Coolant Hole Diameter (Decimal Inch) | 0.1870 |
| Toolholder Material | Carbide |
