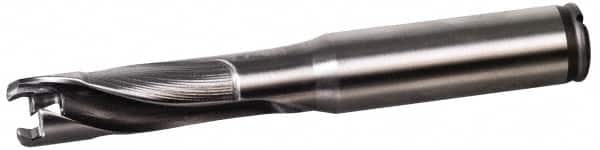

Kennametal - 12 to 12.49mm Diam, 3xD, 38mm Max Depth, 14mm Shank Diam, 52mm Flute, 101mm OAL, Replaceable Tip Drill - KTIP1200HPM Insert, N Seat Size, Series KenTIP
Item #: 48580500
Brand: Kennametal
Model #: 2268311
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | KenTIP |
| Minimum Drill Diameter (mm) | 12.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.4724 |
| Maximum Drill Diameter (mm) | 12.49 |
| Maximum Drill Diameter (Decimal Inch) | 0.4917 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (mm) | 38.00 |
| Shank Diameter (mm) | 14.00 |
| Shank Diameter (Decimal Inch) | 0.5512 |
| Insert Style | KTIP1200HPM |
| Insert Seat Size | N |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Tip Length (mm) | 2.10 |
| Flute Length (mm) | 52.00 |
| Flute Length (Decimal Inch) | 2.0472 |
| Overall Length (mm) | 101.00 |
| Shank Length (mm) | 46.00 |
