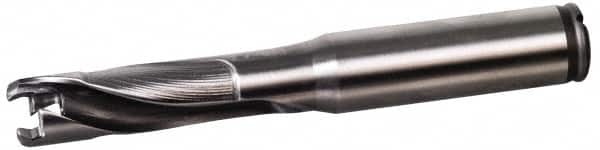

Kennametal - 8 to 8.49mm Diam, 5xD, 43mm Max Depth, 10mm Shank Diam, 53mm Flute, 97mm OAL, Replaceable Tip Drill - KTIP0800HPM Insert, F Seat Size, Series KenTIP
Item #: 48580385
Brand: Kennametal
Model #: 2258040
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | KenTIP |
| Minimum Drill Diameter (mm) | 8.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.3150 |
| Maximum Drill Diameter (mm) | 8.49 |
| Maximum Drill Diameter (Decimal Inch) | 0.3343 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (mm) | 43.00 |
| Shank Diameter (mm) | 10.00 |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Insert Style | KTIP0800HPM |
| Insert Seat Size | F |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Tip Length (mm) | 1.40 |
| Flute Length (mm) | 53.00 |
| Overall Length (mm) | 97.00 |
| Shank Length (mm) | 41.00 |
