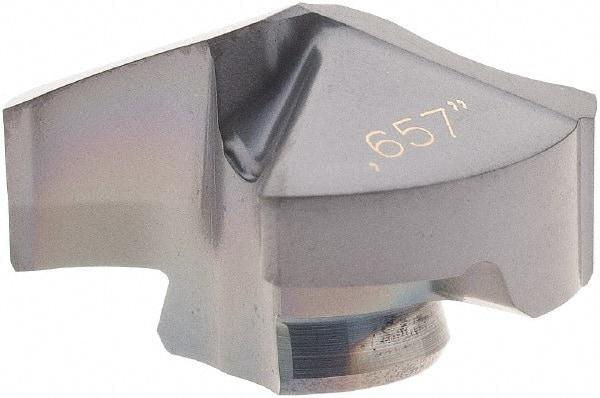

Ingersoll Cutting Tools - Series Y, 16.7mm Diam Grade IN2005 140° Replaceable Drill Tip - Carbide, TiAlN Finish, 16 Seat Size
Item #: 48550628
Brand: Ingersoll Cutting Tools
Model #: 5100163
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Diameter (mm) | 16.70 |
| Diameter (Decimal Inch) | 0.6575 |
| Included Angle | 140 |
| Material | Carbide |
| Material Grade | C2 |
| Manufacturer's Grade | IN2005 |
| Series | Y |
| Coating | TiAlN |
| Insert Seat Size | 16 |
| Through Coolant | NonThrough Coolant |
| Coating Process | PVD |
