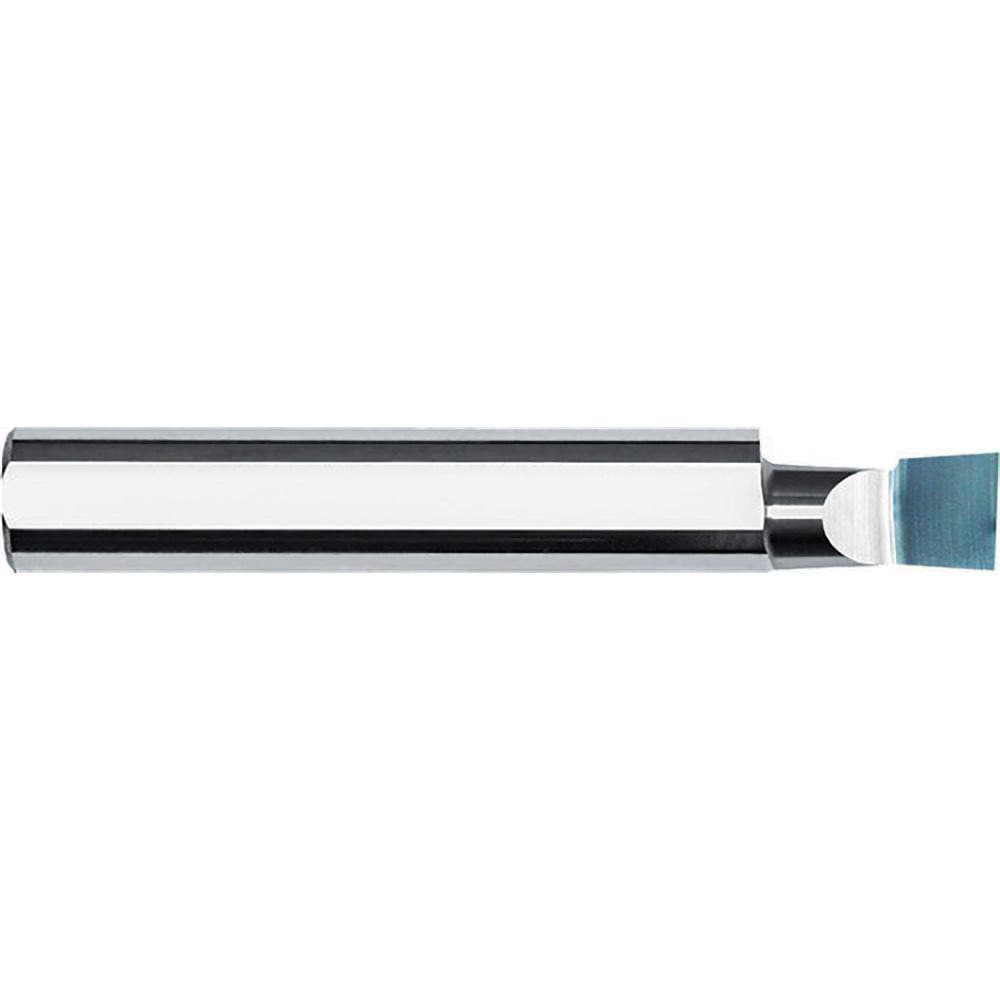

Boring Bar: 0.0500" Min Bore Dia, 0.4000" Max Bore Depth, Right Hand, 1/8" Shank Dia, Micrograin Solid Carbide
Item #: 09868548
Brand: Internal Tool
Model #: 10-1015-R-T
Product Specifications
| Boring Bar Type | Boring |
| Cutting Direction | Right Hand |
| Minimum Bore Diameter (Decimal Inch) | 0.0500 |
| Material | Carbide |
| Material Grade | Micrograin |
| Maximum Bore Depth (Decimal Inch) | 0.4000 |
| Projection (Decimal Inch) | 0.4000 |
| Shank Diameter (Inch) | 1/8 |
| Overall Length (Inch) | 2 |
| Corner Radius (Decimal Inch) | 0.0040 |
| Bar End Angle | 1.5 |
| Series | 10 |
| Overall Length (Decimal Inch) | 2.0000 |
| Primary Workpiece Material | Universal |
| Relief Angle | 4 |
| UNSPSC Code | 23241601 |
