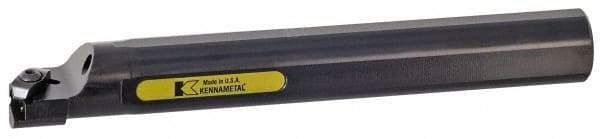

Kennametal - 11.5mm Min Bore Diam, 125mm OAL, 10mm Shank Diam, A-NNT Indexable Boring Bar - NG Insert, Clamp Holding Method
Item #: 48422489
Brand: Kennametal
Model #: 1098943
Exact Tooling IR#: 04
Product Specifications | |
---|---|
Toolholder Style | A-NNT |
Series | Top Notch |
Minimum Bore Diameter (mm) | 11.50 |
Hand of Holder | Right Hand |
Overall Length (mm) | 125.00 |
Overall Length (Decimal Inch) | 4.9213 |
Shank Diameter (mm) | 10.00 |
Insert Compatibility | NG |
Through Coolant | Yes |
Multi-Use Tool | No |
Insert Holding Method | Clamp |
Lead Angle | 3 |
Center to Cutting Edge (mm) | 7.00 |
Coolant Hole Thread Size (Inch) | 1/16-27 NPT |
Coolant Hole Diameter (mm) | 3.20 |
Complete Insert Compatibility | NG 1L |
Toolholder Material | Steel |
