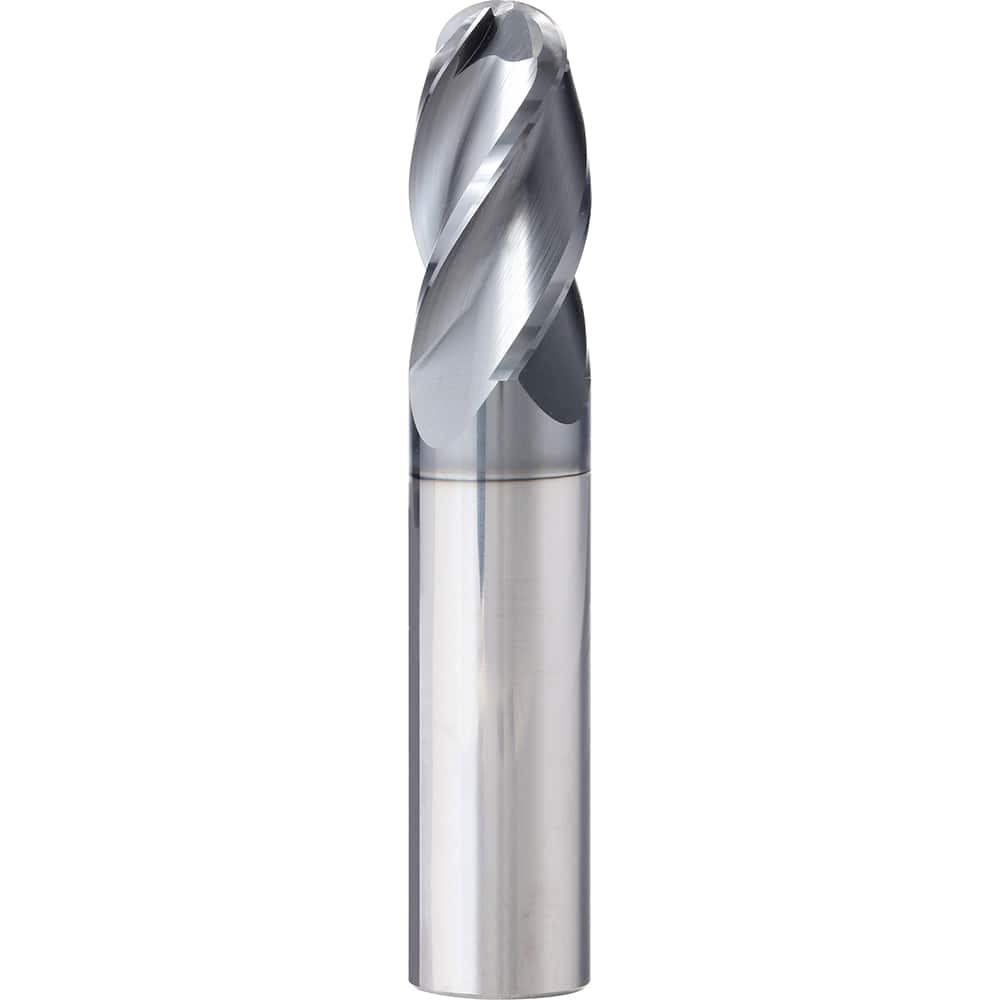

Ball End Mill: 0.875″ Dia, 1.5″ LOC, 4 Flute, Solid Carbide 4″ OAL, 7/8″ Shank Dia, 35 ° Helix, AlCrN Coated, Single End, Series SAPB
Item #: 48364038
Brand: Supermill
Model #: SAPB875
Product Specifications
| Mill Diameter (Inch) | 7/8 |
| Mill Diameter (Decimal Inch) | 0.8750 |
| Length of Cut (Inch) | 1-1/2 |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Helix Angle | 35 |
| Variable Index | Yes |
| Length Of Cut Range (Decimal Inch) | 1.5000 |
| Variable Helix | No |
| Shank Diameter (Inch) | 7/8 |
| Shank Diameter (Decimal Inch) | 0.8750 |
| Overall Length (Inch) | 4 |
| Overall Length (Decimal Inch) | 4.0000 |
| Material Grade | Micrograin |
| Cutting Direction | Right Hand |
| Series | SAPB |
| Centercutting | Yes |
| Single Or Double End | Single |
| Number Of Flutes | 4 |
| Coating/Finish | AlCrN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.5000 |
| Manufacturers Catalog Number | 21057 |
