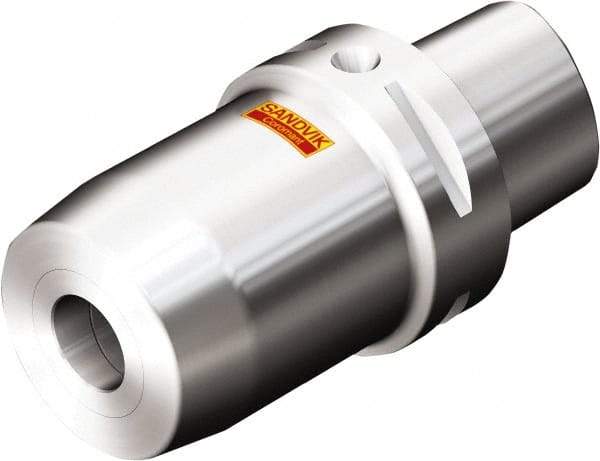

Sandvik Coromant - C6 Modular Connection, 32mm Hole Diam, Hydraulic Tool Holder/Chuck - 68mm Nose Diam, 91mm Projection, 36mm Clamp Depth, 20,000 RPM, Through Coolant
Item #: 48300677
Brand: Sandvik Coromant
Model #: 6255455
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Modular Connection |
| Connection Size | C6 |
| Hole Diameter (Decimal Inch) | 1.2598 |
| Hole Diameter (mm) | 32.00 |
| Nose Diameter (Decimal Inch) | 2.6772 |
| Nose Diameter (mm) | 68.00 |
| Projection (Decimal Inch) | 3.5827 |
| Projection (mm) | 91.00 |
| Through Coolant | Yes |
| Clamping Depth (mm) | 36.00 |
| Clamping Depth (Decimal Inch) | 2.0079 |
| Overall Length (mm) | 129.00 |
| Overall Length (Decimal Inch) | 5.0787 |
| Balanced to (RPM) | 20000 |
