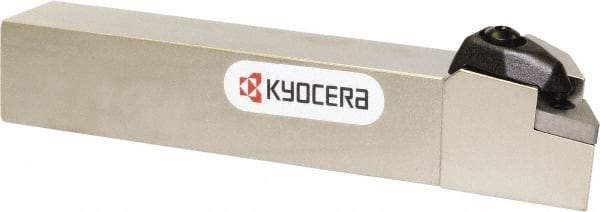

Kyocera - DDJN, Left Hand Cut, 93° Lead Angle, 1" Shank Height x 1" Shank Width, Negative Rake Indexable Turning Toolholder - 6" OAL, DN.. 43.. Insert Compatibility, Series DDJN
Item #: 48284400
Brand: Kyocera
Model #: 8819013
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | DDJN |
| Rake | Negative |
| Rake Angle | -6 (Radial); -7 (Axial) |
| Series | DDJN |
| Lead Angle | 93 |
| Shank Width (Inch) | 1 |
| Shank Width (Decimal Inch) | 1.0000 |
| Shank Height (Inch) | 1 |
| Shank Height (Decimal Inch) | 1.0000 |
| Overall Length (Decimal Inch) | 6.0000 |
| Insert Compatibility | DN.. 43.. |
| Multi-Use Tool | Yes |
| Multi-Use Application | Copying; External Turning |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2500 |
| Head Length (Decimal Inch) | 1.5400 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
