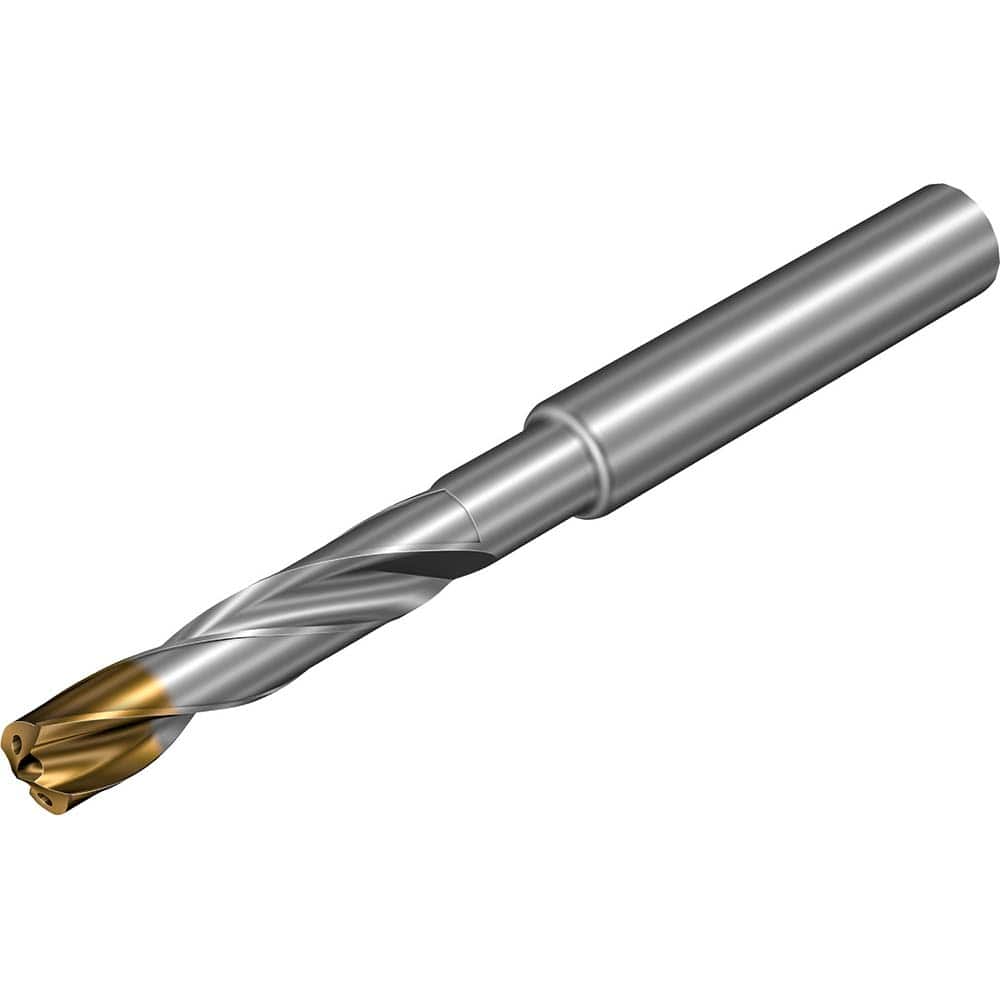

Screw Machine Length Drill Bit: 0.5216″ Dia, 140 °, Solid Carbide TiAlSiN & TiSiN Finish, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank
Item #: 48195705
Brand: Sandvik Coromant
Model #: 7974414
Product Specifications
| Drill Bit Size (mm) | 13.25 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | TiSiN; TiAlSiN |
| Drill Point Angle | 140 |
| Flute Type | Spiral |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Drill Bit Size (Decimal Inch) | 0.5216 |
| Overall Length (mm) | 107.00 |
| Shank Diameter (mm) | 14.00 |
| Maximum Drilling Depth (mm) | 43.00 |
| Drill Point Length (mm) | 2.41 |
| Flute By Diameter Ratio | 3xD |
| Drill Bit Diameter Tolerance | h6 |
| Flute Length (mm) | 60.00 |
| Drill Bit Grade | X1BM |
| Drill Bit Size Range (Decimal Inch) | 0.5000 to 0.6000 |
| Drill Bit Size Range (mm) | 11.00 to 13.50 |
