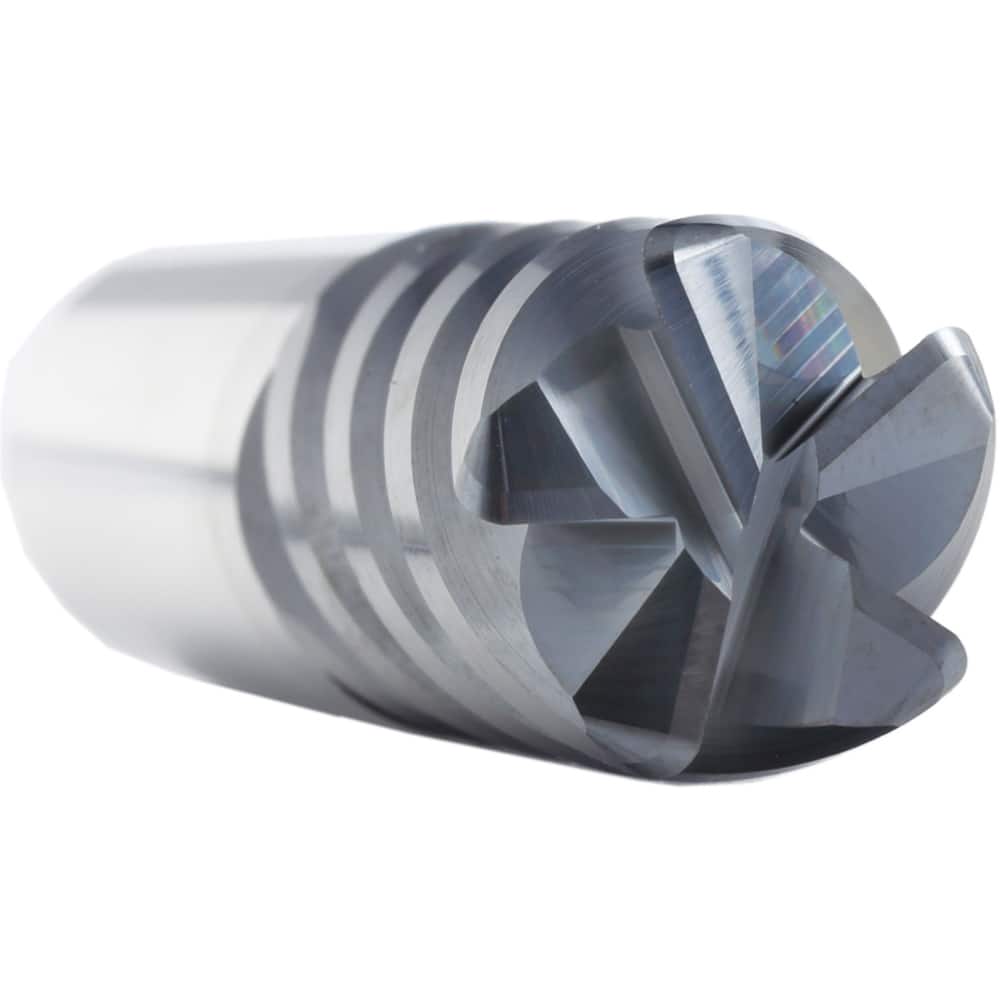

Supermill - Corner Radius & Corner Chamfer End Mills; Mill Diameter (Inch): 1 ; Mill Diameter (Decimal Inch): 1.0000 ; End Type: Corner Radius ; Corner Radius (Inch): 0.062 ; Number of Flutes: 5 ; Material: Solid Carbide
Item #: 48191597
Brand: Supermill
Model #: SM5F1.0A-062
Product Specifications
Corner Radius & Corner Chamfer End Mills; Mill Diameter (Inch): 1 ; Mill Diameter (Decimal Inch): 1.0000 ; End Type: Corner Radius ; Corner Radius (Inch): 0.062 ; Number of Flutes: 5 ; Material: Solid Carbide
| Mill Diameter (Inch) | 1 |
| Mill Diameter (Decimal Inch) | 1.0000 |
| End Type | Corner Radius |
| Corner Radius (Inch) | 0.062 |
| Number of Flutes | 5 |
| Material | Solid Carbide |
| Finish/Coating | AlTiN |
| Length of Cut (Inch) | 2 |
| Length of Cut (Decimal Inch) | 2.0000 |
| Shank Diameter (Inch) | 1 |
| Overall Length (Inch) | 4 |
| Cutting Direction | Right Hand |
| Helix Angle | 45 |
| Variable Index | Yes |
| Variable Helix | No |
| Material Grade | Micrograin |
| Single or Double End | Single |
| Centercutting | Yes |
| Series/List | SM5F-NB |
| Chipbreaker | No |
