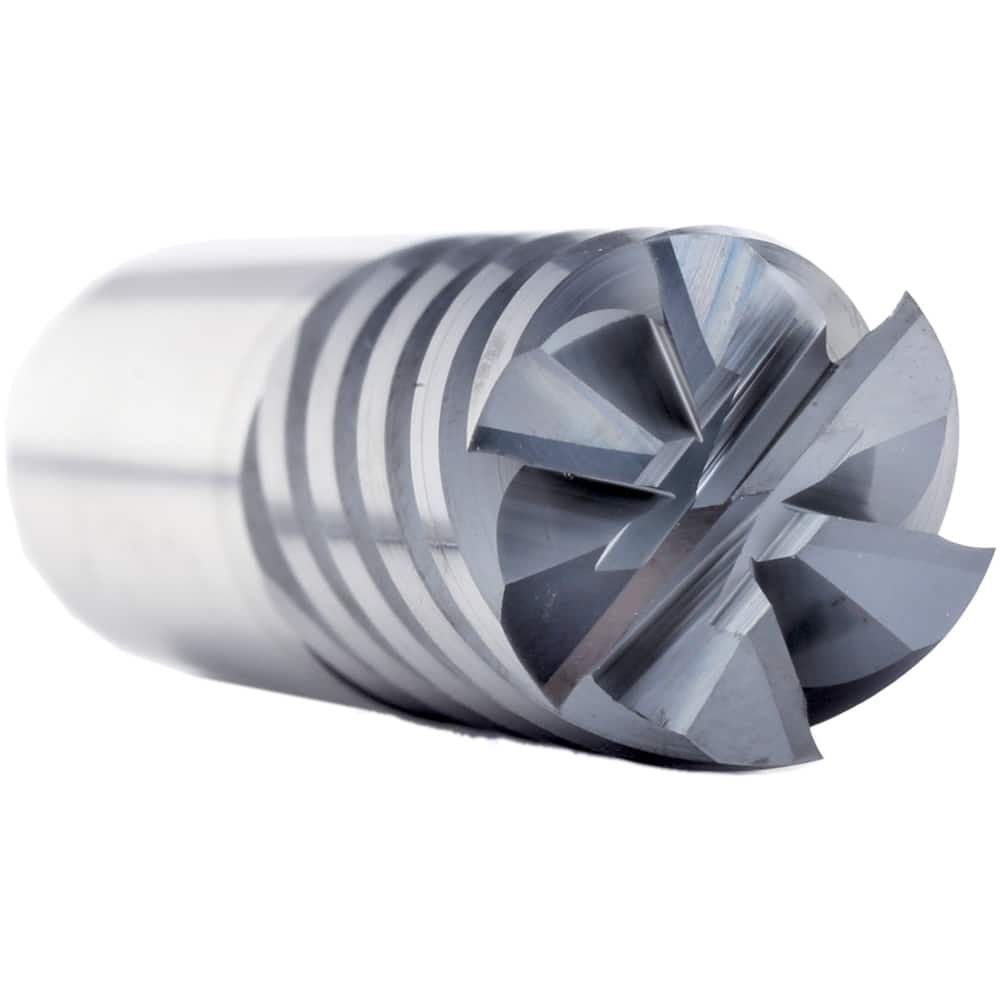

Supermill - Corner Radius & Corner Chamfer End Mills; Mill Diameter (Inch): 3/4 ; Mill Diameter (Decimal Inch): 0.7500 ; End Type: Corner Radius ; Corner Radius (Inch): 0.03 ; Number of Flutes: 6 ; Material: Solid Carbide
Item #: 48191134
Brand: Supermill
Model #: SM6F750-030
Product Specifications
Corner Radius & Corner Chamfer End Mills; Mill Diameter (Inch): 3/4 ; Mill Diameter (Decimal Inch): 0.7500 ; End Type: Corner Radius ; Corner Radius (Inch): 0.03 ; Number of Flutes: 6 ; Material: Solid Carbide
| Mill Diameter (Inch) | 3/4 |
| Mill Diameter (Decimal Inch) | 0.7500 |
| End Type | Corner Radius |
| Corner Radius (Inch) | 0.03 |
| Number of Flutes | 6 |
| Material | Solid Carbide |
| Finish/Coating | AlCrN |
| Length of Cut (Inch) | 1-5/8 |
| Length of Cut (Decimal Inch) | 1.6250 |
| Shank Diameter (Inch) | 3/4 |
| Overall Length (Inch) | 4 |
| Cutting Direction | Right Hand |
| Helix Angle | 45 |
| Variable Index | Yes |
| Variable Helix | No |
| Material Grade | Micrograin |
| Single or Double End | Single |
| Centercutting | Yes |
| Series/List | SM6F |
| Chipbreaker | No |
