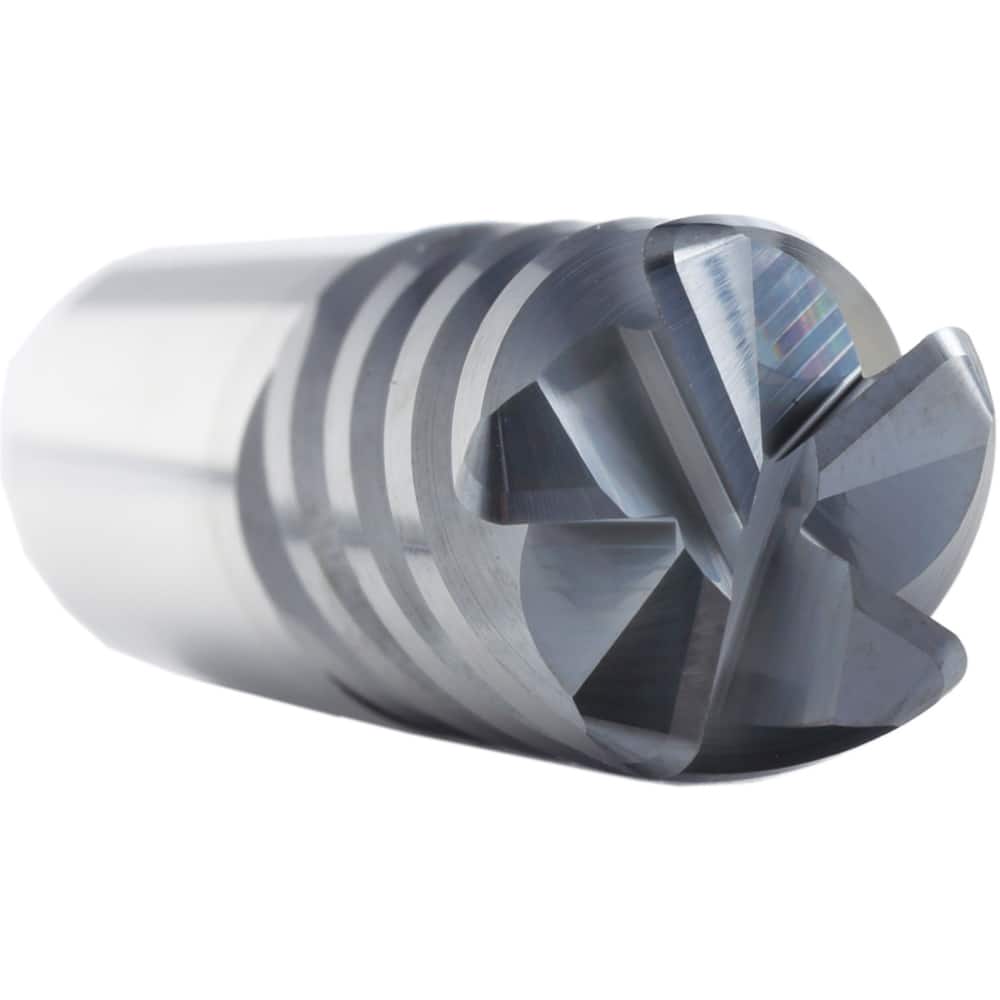

Corner Radius End Mill: 1″ Dia, 1-1/2″ LOC, 0.03″ Radius, 5 Flutes, Solid Carbide 4″ OAL, 1″ Shank Dia, 45 ° Helix, AlTiN Coated, Corner Radius End, Centercutting, Series SM5F-NB
Item #: 48190839
Brand: Supermill
Model #: SM5F1.0MA-030
Product Specifications
| Mill Diameter (Decimal Inch) | 1.0000 |
| Mill Diameter (Inch) | 1 |
| Length of Cut (Inch) | 1-1/2 |
| Corner Radius (Decimal Inch) | 0.0300 |
| Number Of Flutes | 5 |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| End Type | Corner Radius |
| Helix Angle | 45 |
| Centercutting | Yes |
| Variable Index | Yes |
| Variable Helix | No |
| Shank Diameter (Inch) | 1 |
| Overall Length (Inch) | 4 |
| Overall Length (Decimal Inch) | 4.0000 |
| Cutting Direction | Right Hand |
| Material Grade | Micrograin |
| Series | SM5F-NB |
| Single Or Double End | Single |
| Manufacturers Catalog Number | SM5F-NB |
| Coating/Finish | AlTiN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.5000 |
