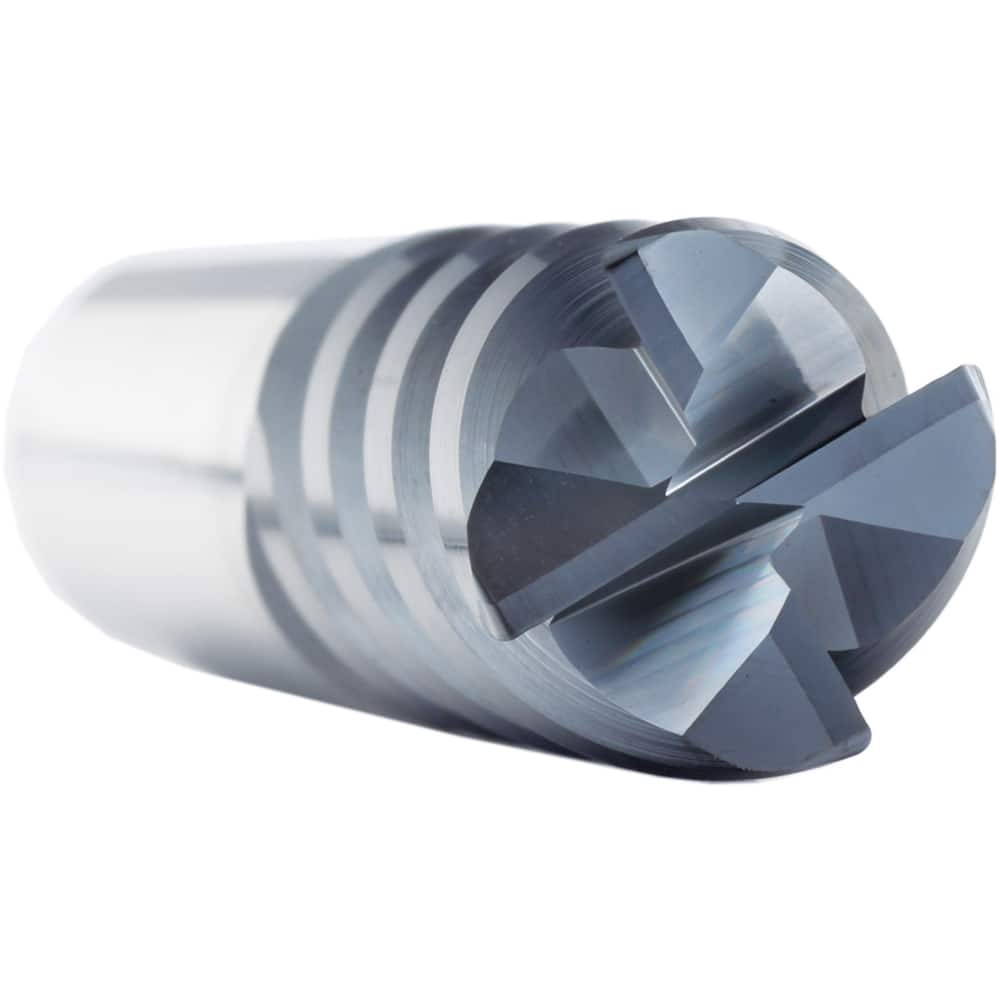

Corner Radius End Mill: 3/16″ Dia, 9/16″ LOC, 0.01″ Radius, 4 Flutes, Solid Carbide 2″ OAL, 3/16″ Shank Dia, 50 ° Helix, AlCrN Coated, Corner Radius End, Centercutting, Series SM4F
Item #: 48188668
Brand: Supermill
Model #: SM4F187RA
Product Specifications
| Mill Diameter (Decimal Inch) | 0.1875 |
| Mill Diameter (Inch) | 3/16 |
| Length of Cut (Inch) | 9/16 |
| Corner Radius (Decimal Inch) | 0.0100 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| End Type | Corner Radius |
| Helix Angle | 50 |
| Centercutting | Yes |
| Variable Index | No |
| Variable Helix | No |
| Shank Diameter (Inch) | 3/16 |
| Overall Length (Inch) | 2 |
| Overall Length (Decimal Inch) | 2.0000 |
| Cutting Direction | Right Hand |
| Material Grade | Micrograin |
| Series | SM4F |
| Single Or Double End | Single |
| Manufacturers Catalog Number | SM4F |
| Coating/Finish | AlCrN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.5625 |
