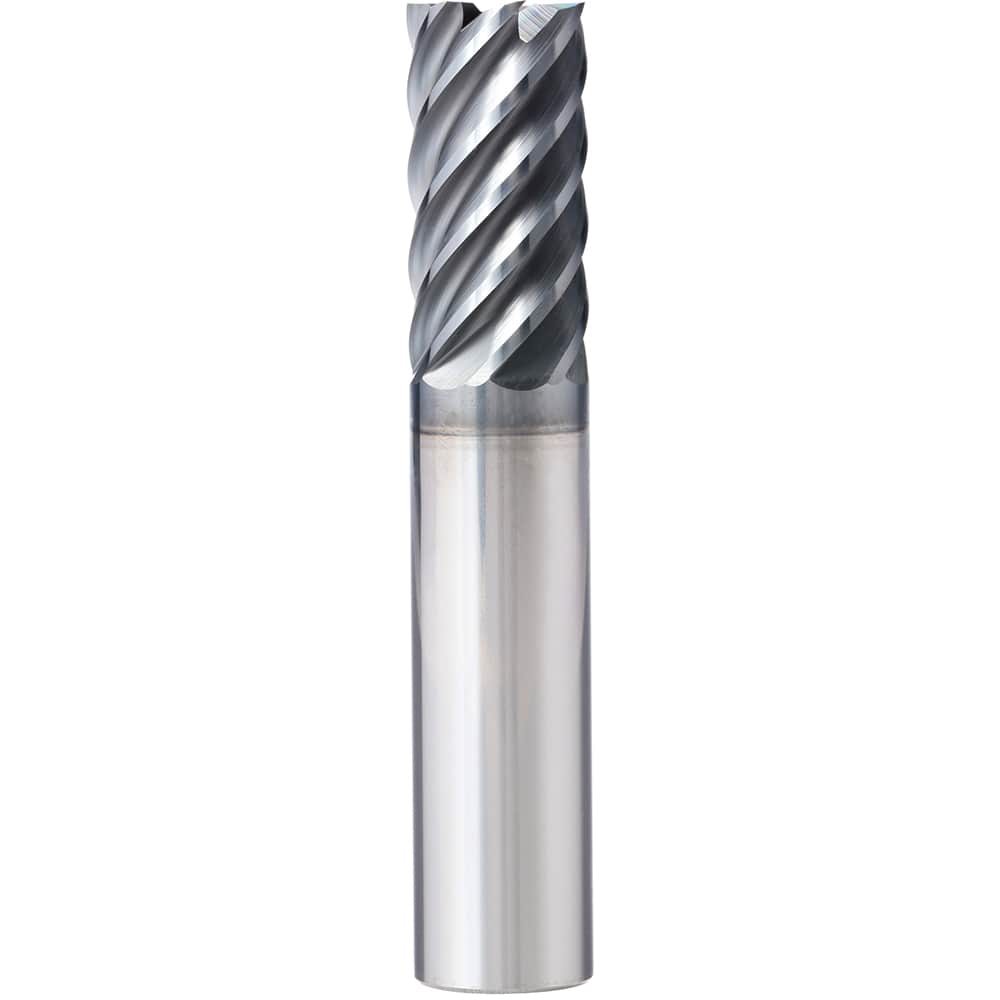

Corner Radius End Mill: 3/4″ Dia, 3″ LOC, 0.03″ Radius, 7 Flutes, Solid Carbide 6″ OAL, 3/4″ Shank Dia, 45 ° Helix, AlCrN Coated, Corner Radius End, Centercutting, Series SM7F
Item #: 48187553
Brand: Supermill
Model #: SM7F750XL-030
Product Specifications
| Mill Diameter (Decimal Inch) | 0.7500 |
| Mill Diameter (Inch) | 3/4 |
| Length of Cut (Inch) | 3 |
| Corner Radius (Decimal Inch) | 0.0300 |
| Number Of Flutes | 7 |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| End Type | Corner Radius |
| Helix Angle | 45 |
| Centercutting | Yes |
| Variable Index | Yes |
| Variable Helix | No |
| Shank Diameter (Inch) | 3/4 |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6.0000 |
| Cutting Direction | Right Hand |
| Material Grade | Micrograin |
| Series | SM7F |
| Single Or Double End | Single |
| Manufacturers Catalog Number | SM7F |
| Coating/Finish | AlCrN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 3.0000 |
