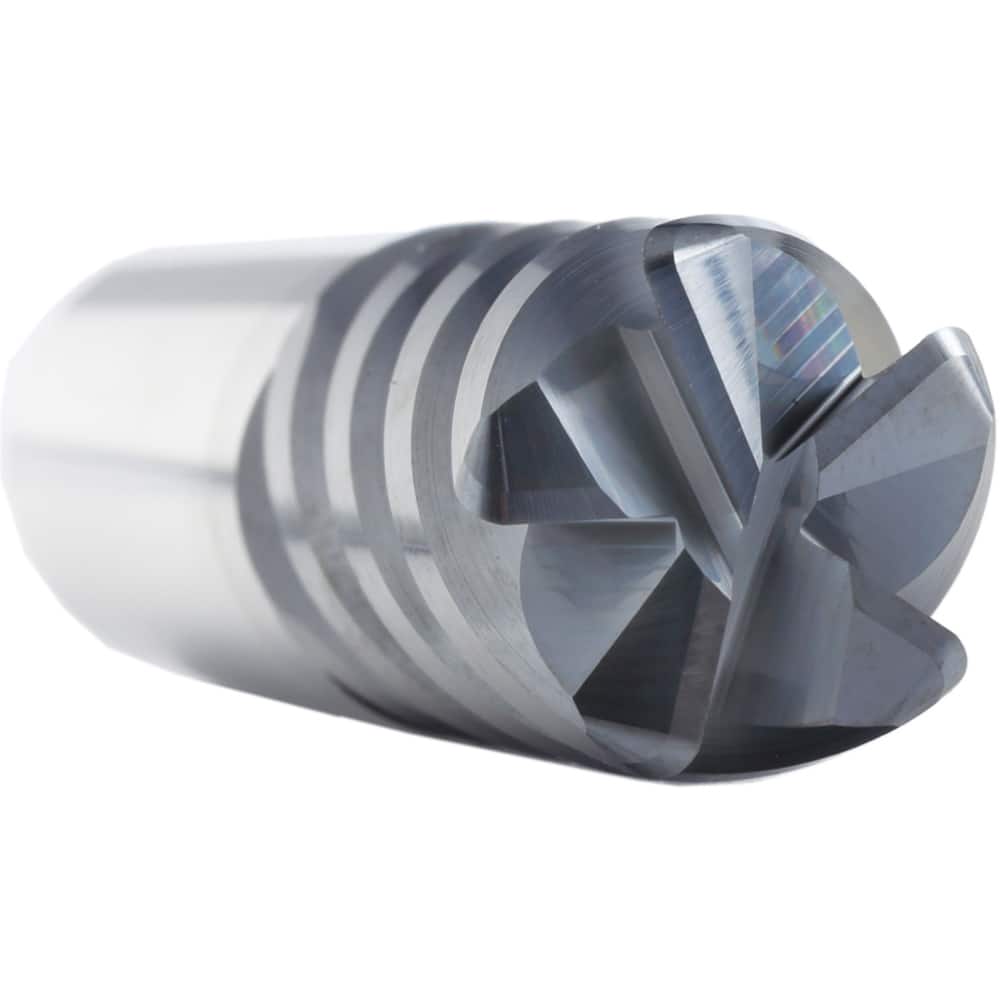

Supermill - Square End Mills; Mill Diameter (Inch): 3/8 ; Mill Diameter (Decimal Inch): 0.3750 ; Number of Flutes: 5 ; Length of Cut (Inch): 1-1/4 ; Length of Cut (Decimal Inch): 1.2500 ; Material: Solid Carbide
Item #: 48183388
Brand: Supermill
Model #: SM5F375LA
Product Specifications
Square End Mills; Mill Diameter (Inch): 3/8 ; Mill Diameter (Decimal Inch): 0.3750 ; Number of Flutes: 5 ; Length of Cut (Inch): 1-1/4 ; Length of Cut (Decimal Inch): 1.2500 ; Material: Solid Carbide
| Mill Diameter (Inch) | 3/8 |
| Mill Diameter (Decimal Inch) | 0.3750 |
| Number of Flutes | 5 |
| Length of Cut (Inch) | 1-1/4 |
| Length of Cut (Decimal Inch) | 1.2500 |
| Material | Solid Carbide |
| Finish/Coating | AlTiN |
| Shank Diameter (Inch) | 3/8 |
| Single or Double End | Single |
| Overall Length (Inch) | 3 |
| Overall Length (Decimal Inch) | 3.00000 |
| Center Cutting | Center Cutting |
| Cutting Direction | Right Hand |
| Helix Angle | 45 |
| Variable Helix | No |
| Variable Index | Yes |
| Material Grade | Micrograin |
| Chipbreaker | No |
| Series/List | SM5F-NB |
