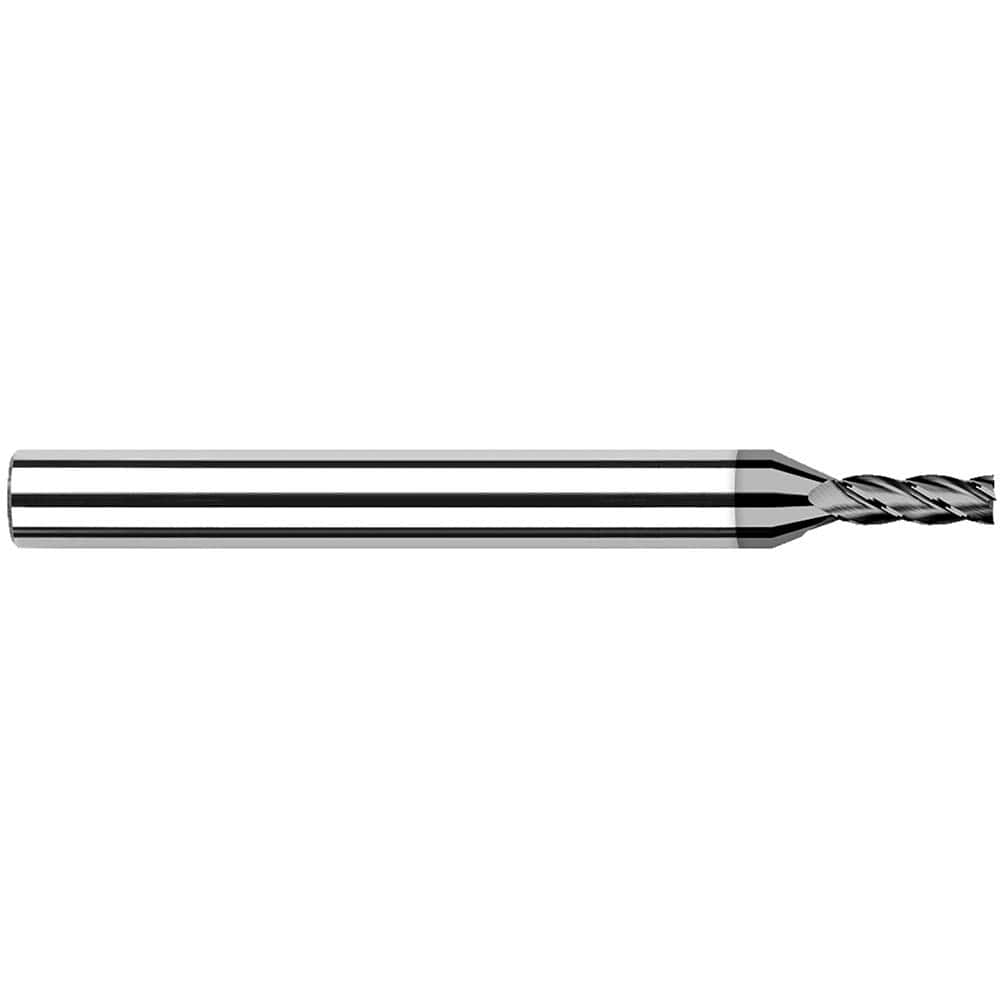

Harvey Tool - Square End Mills; Mill Diameter (Inch): 1/2 ; Mill Diameter (Decimal Inch): 0.5000 ; Length of Cut (Inch): 2-5/8 ; Length of Cut (Decimal Inch): 2.6250 ; Material: Solid Carbide ; Finish/Coating: CVD
Item #: 48179295
Brand: Harvey Tool
Model #: 936732
Product Specifications
Square End Mills; Mill Diameter (Inch): 1/2 ; Mill Diameter (Decimal Inch): 0.5000 ; Length of Cut (Inch): 2-5/8 ; Length of Cut (Decimal Inch): 2.6250 ; Material: Solid Carbide ; Finish/Coating: CVD
| Mill Diameter (Inch) | 1/2 |
| Mill Diameter (Decimal Inch) | 0.5000 |
| Length of Cut (Inch) | 2-5/8 |
| Length of Cut (Decimal Inch) | 2.6250 |
| Material | Solid Carbide |
| Finish/Coating | CVD |
| Shank Diameter (Inch) | 1/2 |
| Single or Double End | Single |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6.00000 |
| Center Cutting | NonCenter Cutting |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Helix Angle | 30 |
| Variable Helix | No |
| Series/List | Diamond End Mills for Non-Ferrous Materials - CVD Diamond - Square |
