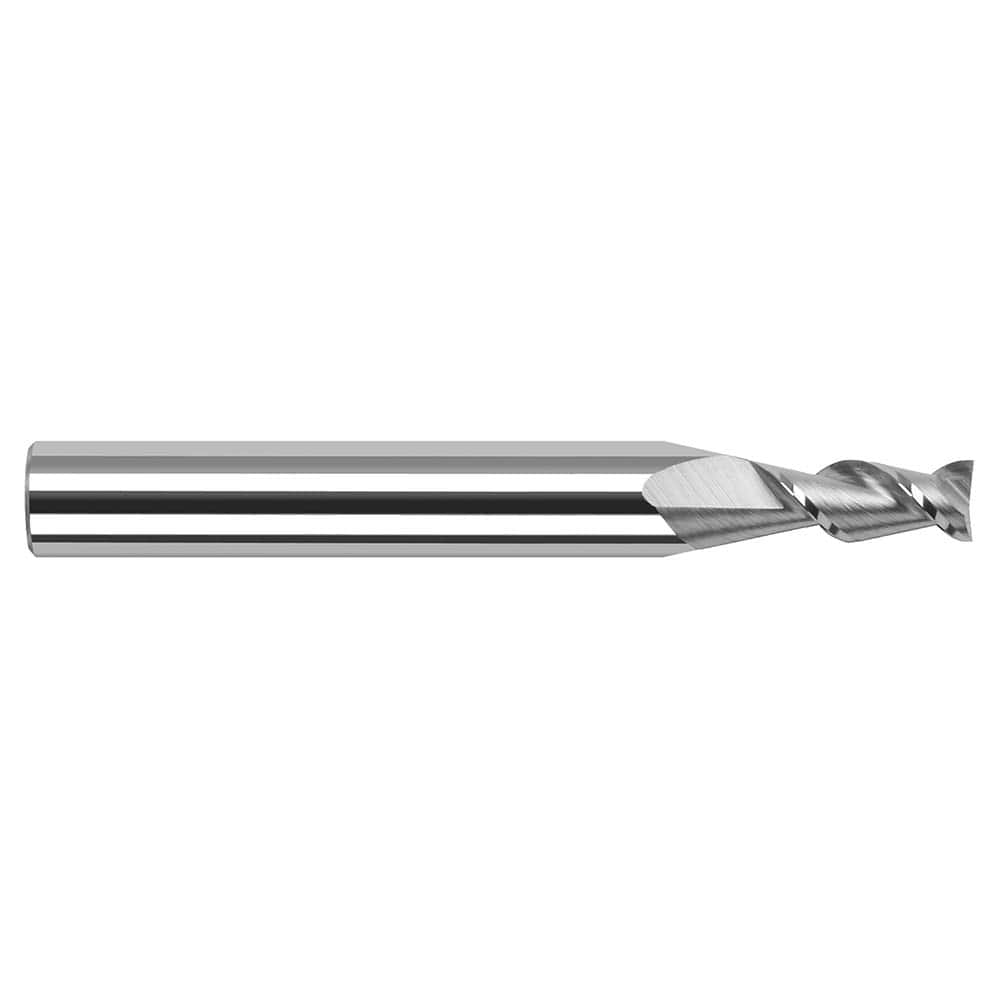

Harvey Tool - Square End Mills; Mill Diameter (mm): 0.80 ; Mill Diameter (Inch): 1/32 ; Mill Diameter (Decimal Inch): 0.0310 ; Length of Cut (mm): 1.2000 ; Length of Cut (Inch): 3/64 ; Length of Cut (Decimal Inch): 0.0470
Item #: 48177612
Brand: Harvey Tool
Model #: 935531
Product Specifications
Square End Mills; Mill Diameter (mm): 0.80 ; Mill Diameter (Inch): 1/32 ; Mill Diameter (Decimal Inch): 0.0310 ; Length of Cut (mm): 1.2000 ; Length of Cut (Inch): 3/64 ; Length of Cut (Decimal Inch): 0.0470
| Mill Diameter (mm) | 0.80 |
| Mill Diameter (Inch) | 1/32 |
| Mill Diameter (Decimal Inch) | 0.0310 |
| Length of Cut (mm) | 1.2000 |
| Length of Cut (Inch) | 3/64 |
| Length of Cut (Decimal Inch) | 0.0470 |
| Material | Solid Carbide |
| Finish/Coating | Uncoated |
| Shank Diameter (Inch) | 1/8 |
| Single or Double End | Single |
| Overall Length (Inch) | 1-1/2 |
| Overall Length (Decimal Inch) | 1.50000 |
| Center Cutting | NonCenter Cutting |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Helix Angle | 45 |
| Variable Helix | No |
| Series/List | High Helix End Mills for Aluminum Alloys - 45? Helix - Square |
