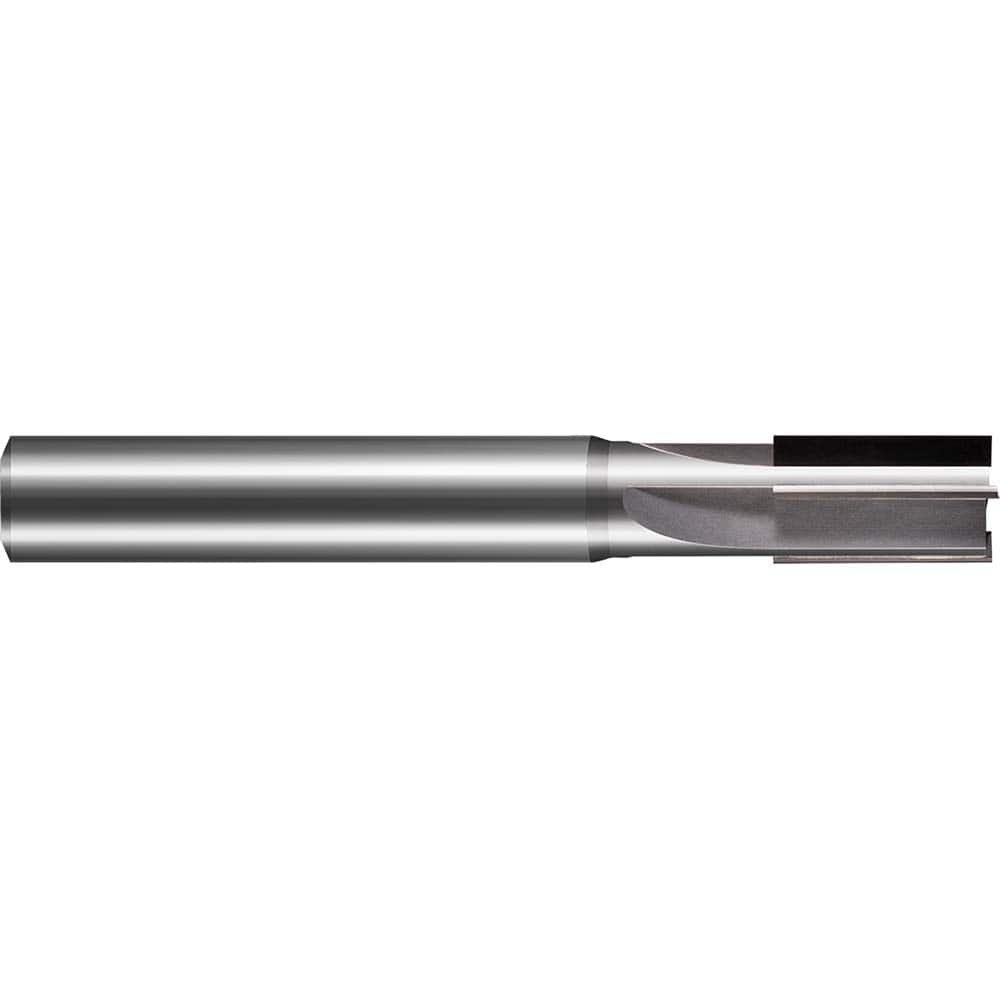

Harvey Tool - Square End Mills; Mill Diameter (Inch): 1/2 ; Mill Diameter (Decimal Inch): 0.5000 ; Length of Cut (Inch): 1 ; Length of Cut (Decimal Inch): 1.0000 ; Material: Brazed Solid Carbide ; Finish/Coating: Polycrystaline Diamond
Item #: 48176176
Brand: Harvey Tool
Model #: 914132
Product Specifications
Square End Mills; Mill Diameter (Inch): 1/2 ; Mill Diameter (Decimal Inch): 0.5000 ; Length of Cut (Inch): 1 ; Length of Cut (Decimal Inch): 1.0000 ; Material: Brazed Solid Carbide ; Finish/Coating: Polycrystaline Diamond
| Mill Diameter (Inch) | 1/2 |
| Mill Diameter (Decimal Inch) | 0.5000 |
| Length of Cut (Inch) | 1 |
| Length of Cut (Decimal Inch) | 1.0000 |
| Material | Brazed Solid Carbide |
| Finish/Coating | Polycrystaline Diamond |
| Shank Diameter (Inch) | 1/2 |
| Single or Double End | Single |
| Overall Length (Inch) | 3 |
| Overall Length (Decimal Inch) | 3.00000 |
| Center Cutting | Center Cutting |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Helix Angle | 0 |
| Variable Helix | No |
| Reach Length (Inch) | 1-3/4 |
| Reach Length (Decimal Inch) | 1.7500 |
| Series/List | Diamond End Mills for Non-Ferrous Materials - PCD Diamond - Square |
