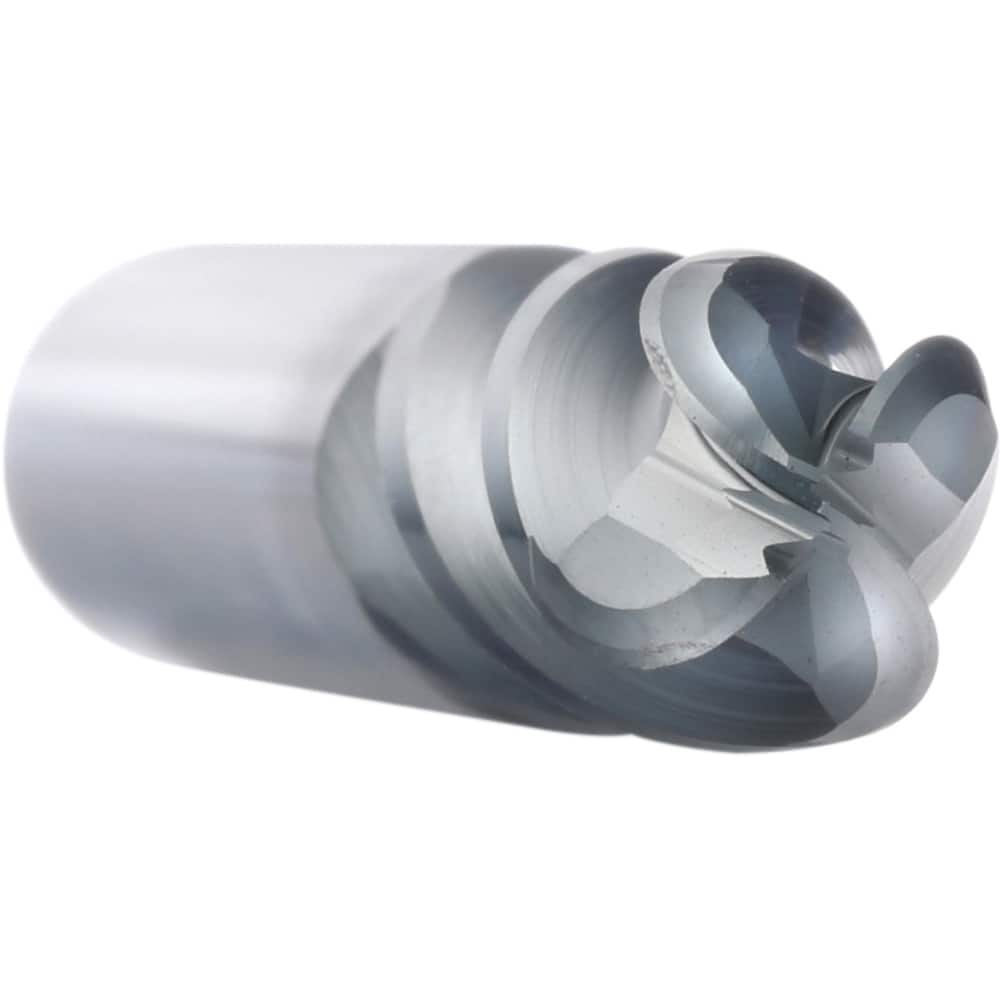

Ball End Mill: 0.25″ Dia, 1.125″ LOC, 4 Flute, Solid Carbide 3″ OAL, 1/4″ Shank Dia, 37 ° Helix, AlCrN Coated, Single End, Series XPVSB
Item #: 48099113
Brand: Supermill
Model #: XPVSB250L
Product Specifications
| Mill Diameter (Inch) | 1/4 |
| Mill Diameter (Decimal Inch) | 0.2500 |
| Length of Cut (Inch) | 1-1/8 |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Helix Angle | 37 |
| Variable Index | Yes |
| Length Of Cut Range (Decimal Inch) | 1.0000 to 1.5000 |
| Variable Helix | Yes |
| Shank Diameter (Inch) | 1/4 |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Overall Length (Inch) | 3 |
| Overall Length (Decimal Inch) | 3.0000 |
| Material Grade | Micrograin |
| Cutting Direction | Right Hand |
| Series | XPVSB |
| Centercutting | Yes |
| Single Or Double End | Single |
| Number Of Flutes | 4 |
| Coating/Finish | AlCrN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.1250 |
| Manufacturers Catalog Number | 41007 |
