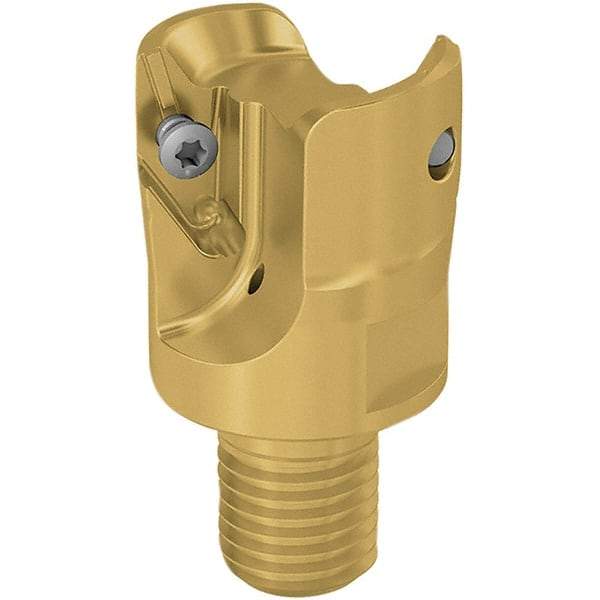

Seco - 40mm Cutting Diam, 10mm Max Depth of Cut, Modular Connection Indexable Copy End Mill - 2 Inserts, VPGX22 Insert, 217.97-22 Toolholder, Steel, Through Coolant
Item #: 48048573
Brand: Seco
Model #: 06067
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 40 |
| Cutting Diameter (Decimal Inch) | 1.5748 |
| Maximum Depth of Cut (mm) | 10.00 |
| Shank Type | Modular Connection |
| Modular Connection Thread Size | M20 |
| Number of Cutter Inserts | 2 |
| Insert Style | VPGX22 |
| Toolholder Style | 217.97-22 |
| Series | 217.97 |
| Overall Length (mm) | 10.00 |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Through Coolant | Yes |
| Weldon Flat | No |
| Number of Flutes | 2 |
| Head Length (mm) | 45.00 |
| Maximum RPM | 35000 |
| Modular Connection Size | M20 |
