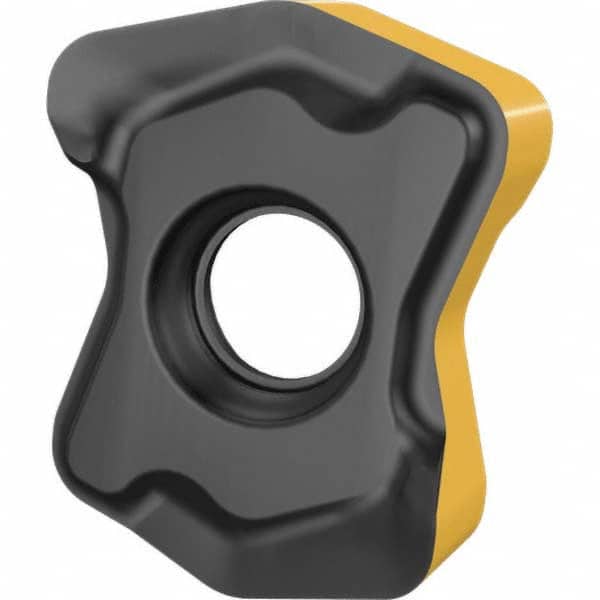

Iscar - FFX4XNMU040310HP Carbide Milling Insert
Item #: 48030183
Brand: Iscar
Model #: 3336661
Product Specifications
| Insert Style | XNMU |
| Insert Size | 040310 |
| Material | Carbide |
| Manufacturer's Grade | IC5820 |
| Coating | Al2O3 |
| Width (mm) | 7.16 |
| Width (Decimal Inch) | 0.2818 |
| Length (mm) | 9.58 |
| Length (Decimal Inch) | 0.3771 |
| Thickness (mm) | 3.95 |
| Thickness (Decimal Inch) | 0.1555 |
| Corner Radius (Decimal Inch) | 0.0393 |
| Corner Radius (mm) | 1.00 |
| Coating Process | CVD |
| Maximum Depth of Cut (mm) | 0.90 |
| Maximum Depth of Cut (Decimal Inch) | 0.0354 |
| Cutter Series Compatibility | FFX4 |
