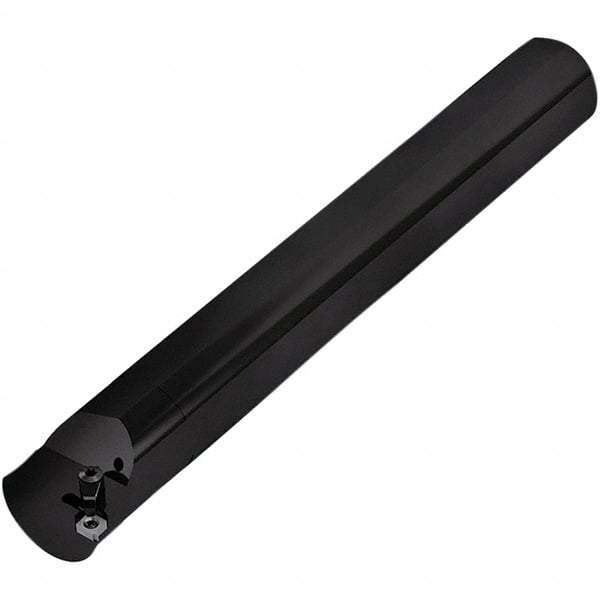

Seco - CNR, Internal, Right Hand, 0.1201" Max Depth of Cut, 0.03 to 0.104" Groove Width, Indexable Grooving Tool Holder - 10NR, 12NR Insert Compatibility, 1" Shank Height, 1" Shank Width, 8" OAL, Through Coolant
Item #: 47980941
Brand: Seco
Model #: 05525
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1201 |
| Minimum Groove Width (Decimal Inch) | 0.0300 |
| Maximum Groove Width (Decimal Inch) | 0.1040 |
| Overall Length (Inch) | 8 |
| Toolholder Style | CNR |
| Insert Compatibility | 10NR; 12NR |
| Shank Height (Inch) | 1 |
| Shank Width/Diameter (Inch) | 1 |
| Series | CNR |
| Through Coolant | Through Coolant |
| Through Coolant | Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Number of Inserts Used on Toolholder | 1 |
