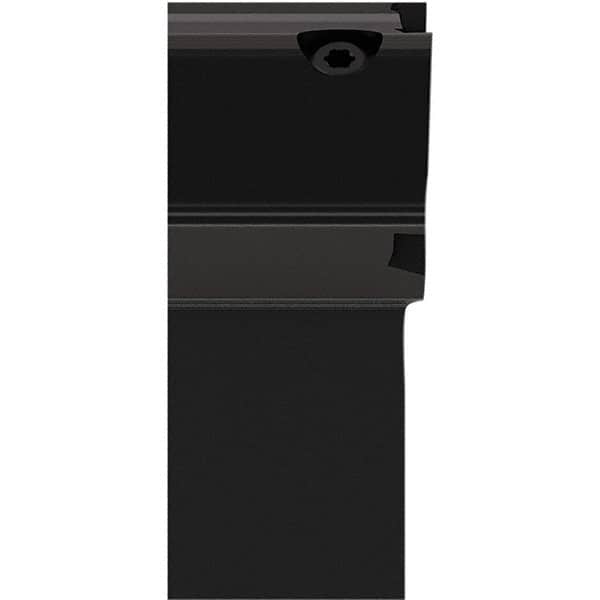

Seco - X4FL, External, Left Hand, 25mm Max Depth of Cut, 0.03 to 0.104" Groove Width, Indexable Grooving Tool Holder - X4GK25..L Insert Compatibility, 25mm Shank Height, 25mm Shank Width, 150mm OAL, Through Coolant
Item #: 47980925
Brand: Seco
Model #: 24599
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (mm) | 25.00 |
| Minimum Groove Width (Decimal Inch) | 0.0300 |
| Maximum Groove Width (Decimal Inch) | 0.1040 |
| Overall Length (mm) | 150.00 |
| Toolholder Style | X4FL |
| Insert Compatibility | X4GK25..L |
| Shank Height (mm) | 25.00 |
| Shank Width/Diameter (mm) | 25.00 |
| Series | X4 |
| Through Coolant | Through Coolant |
| Through Coolant | Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Number of Inserts Used on Toolholder | 1 |
