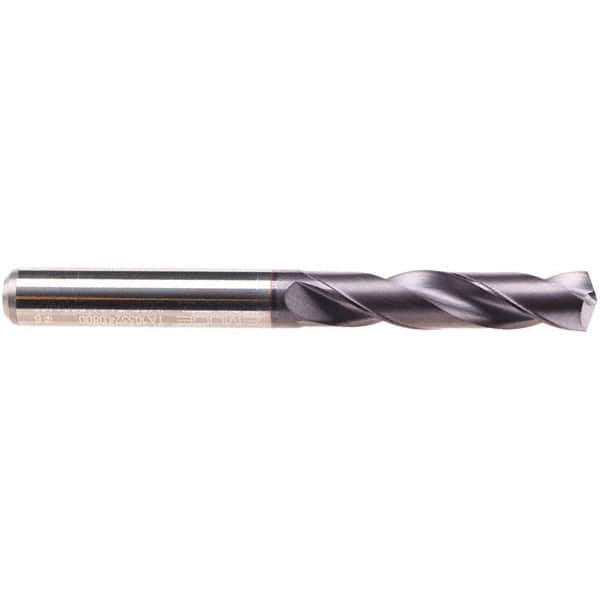

Emuge - 13.5mm 140° Spiral Flute Solid Carbide Screw Machine Drill Bit - TiAlN Finish, Right Hand Cut, 55mm Flute Length, 102mm OAL, Four Facet Point, Straight Shank
Item #: 47953013
Brand: Emuge
Model #: TA103324.1350
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium Aluminum Nitride (TiAlN) has a higher hardness and oxidation temperature versus TiN and TiCN. As a result, it is particularly advantageous for higher speed operations in a variety of steel machining applications.
Spiral flutes are constructed of a higher flute angle to remove chips easier.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.5315 |
| Drill Bit Size (mm) | 13.50 |
| Drill Point Angle | 140 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | TiAlN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Flute Length (mm) | 55.00 |
| Overall Length (mm) | 102.00 |
| Flute Length x Diameter Ratio | 3xD |
| Point Type | Four Facet |
| Shank Diameter (mm) | 14.00 |
| Specification Designation | DIN |
| Maximum Drilling Depth (mm) | 40.00 |
| Spiral Type | Regular Spiral |
| Shank Length (mm) | 45.00 |
| Number of Flutes | 2 |
| Drill Point Length (mm) | 2.60 |
| Drill Bit Diameter Tolerance (mm) | m7 |
| Number of Margins | 1.000 |
| Specification Number | DIN 6535HA; DIN 6537K |
| Web Thinning | Web-Thinned |
| Through Coolant | Yes |
| Drill Bit Grade | High Performance |
| Material Grade | Submicron |
| Series/List | 3XD Solid |
| Length Type | Stub |
